SOMFY LEVIXO 30 RTS

Product Overview

SOMFY LEVIXO 30 RTS is included in the IGTS catalogue for parking barrier requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMFY LEVIXO 30 RTS

Technical Information

• Ref: 1216339
• LEVIXO 30 RTS
• Levixo 30 RTS barrier cabinet for a 3-meter boom, with a usage rate of up to 1200 cycles per day and an opening time of 4 seconds.
• The cabinet barrier SOMFY Levixo 30 RTS is strong and durable, designed for intensive use. Carried out failure tests - 2 million openings and closings.
• The barrier is an indispensable device that restricts unauthorized entry into the territory of enterprises, cottages, private houses, hotels, and hotels.
• The positive qualities of the automatic barrier Levixo 30 RTS include its low cost. This barrier is easy to install and maintain.

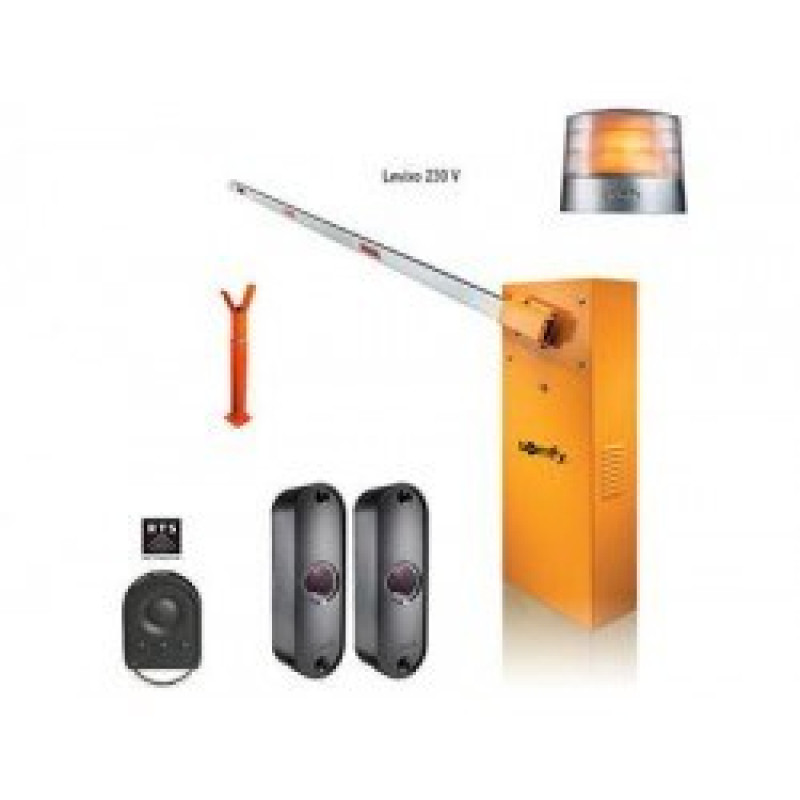

• 1 x Levixo 30 barrier cabinet.
• 1 x Levixo RTS control unit.
• 1 x 3 m arm boom.
• 1 x Master Pro bitech Photocell.
• 1 x Orange Flashing light.
• 2 x Somfy keytis 2 rts.

• Mains power supply - 230 V, 50 Hz
• Maximum power consumption - 300 W
• Power supply for external equipment - 24 V / 180 mA
• Maximum number of operations per day - 1200
• Electric drive torque - 85 Nm
• Opening time - 4 sec
• Radiofrequency - 433.42 MHz
• Radio protocol - RTS
• Number ofremotecontrol channels - 36
• Dust and moisture protection - IP 24
• Operating temperature -10°C to +55°C.
