SOMFY Levixo 24V 40

Product Overview

SOMFY Levixo 24V 40 is included in the IGTS catalogue for parking barrier requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMFY Levixo 24V 40

Technical Information

Technical characteristics Levixo 24V 40 / 60 RTS

• Motor power supply 230V
• Motor voltage 24V
• Maximum power consumption 300 W
• Accessories power supply 24 V / 0.5 A
• Maximum number of operations/day (Openings/Closings) 2 000 (85 cycles/hour)
• Motor torque 4 m (130 Nm) 6 m (260 Nm)
• RTS radio frequency 433.42 MHz
• Number of Remote controls 36 channels maximum
• Index of protection IP 54
• Operating temperature -20°C to +55°C
• Maximum boom length Levixo 40 (4m)

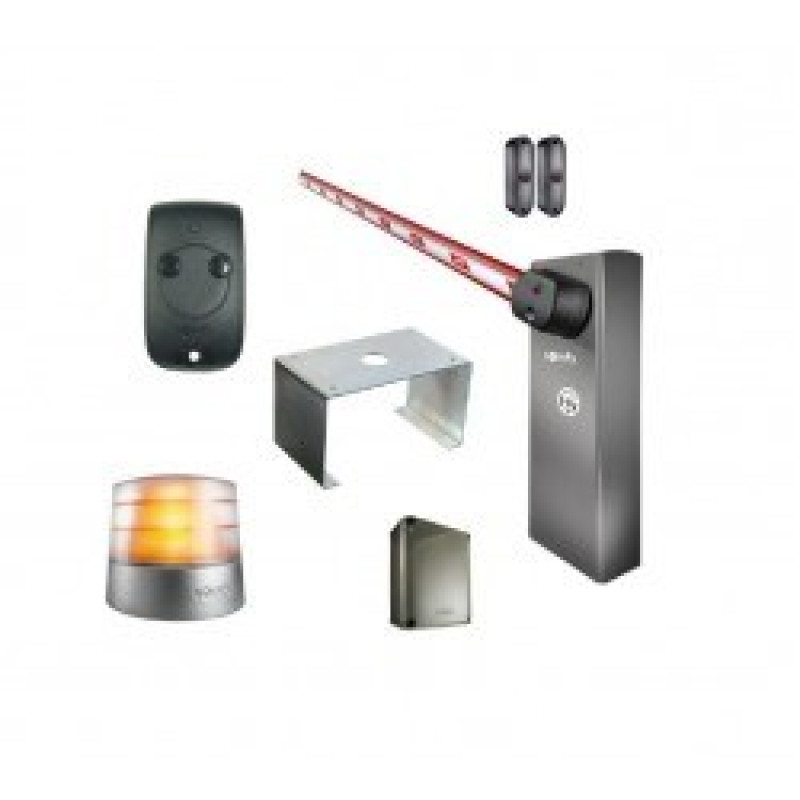

Kits Includes:

• 1 x Levixo 40 Barrier Cabinet.
• 1 x Levixo RTS Control Board.
• 1 x 4-meter arm boom.
• 1 x Master Pro bitech Photocell Sensors.
• 1 x Somfy Orange flashing light.
• 2 x Somfy key Remote controls.
