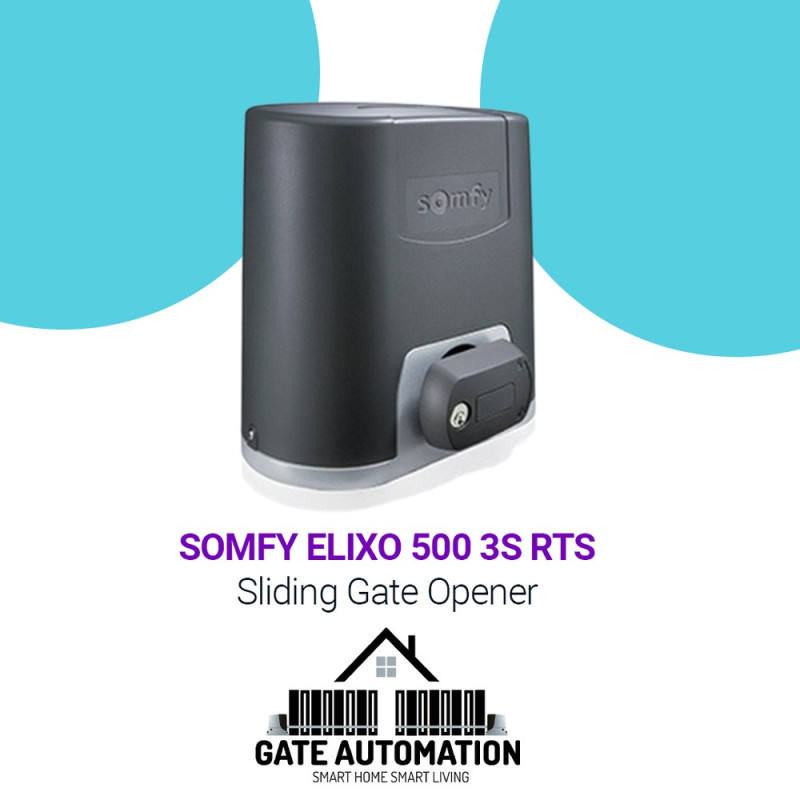

SOMFY ELIXO 500 3S RTS

Product Overview

SOMFY ELIXO 500 3S RTS is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMFY ELIXO 500 3S RTS

Technical Information

SOMFY ELIXO 500 KG 3S RTS

• SOMFY ELIXO 500 3S RTS
• Suitable for all types of sliding gates.
• Quick opening and closing: 20 cm/s.
• Manual release with a key.
• Auto set mode for quicker setting.
• Adjustable parameters.
• For gates up to 500 kg.
• For residential and small collective use.
• Fixed pedestrian opening: 7s.

• Motor power supply: 24 Vdc
• Max. power: 70 W
• Max. number of operations/day: 30
• Number ofremotecontrols that can be memorized: 36
• Protection class (motor): IP 24
• Radiofrequency RTS: 433,42 Mhz
• Gate speed: 12m/min
• Operating temperature: -15°C +40°C.

• 1 x Elixo 500 3S rts motor.
• 2 x Keytis 2remotecontrol.
• 1 x Orange Flashing Light.
• 1 x Photocells Master Pro Biotech.
• 4 x Nylon rack 1m.
• 1 x Push Button.
