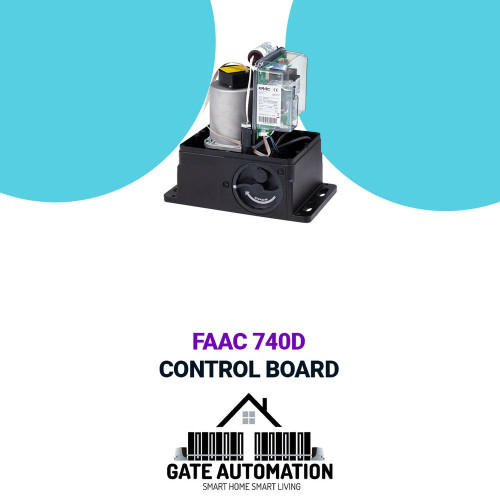

FAAC 740D

Product Overview

FAAC 740D is included in the IGTS catalogue for gate control-board requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: FAAC 740D

Technical Information

Technical specifications:

• Type of power supply: Separated (connection to fasten on the printed circuit)
• Power supply voltage: 220-240V~ 50/60 Hz
• Max. power: 10 W
• Motor max power: 1.000 W
• Max. accessories load: 0.5 A
• Programming : 3 keys (+, -, F) and display, “basic“ and “advanced“ mode
• Status signaling: Via display
• Operating logic: Automatic, Automatic Step by Step, Semi-automatic,
• Semi-automatic Step by Step, Safety, Semi-automatic B, ”Deadman” C/ B/C mixed logic
• Programmable functions :
• Function logics,
• Pause time,
• Thrust power,
• Opening/Closing direction,
• Torque at initial thrust,
• Brake, Failsafe, Pre-flashing,
• Indicator light/Timed output / Electric lock at opening and closing,
• Logic for safety devices at opening and closing,
• Encoder / Anti-crushing sensitivity,
• Decelerations,
• Partial opening time,
• Work time, Service request,
• Cycle count
• Work time: Programmable (from 0 to 4 min)
• Pause time: Programmable (from 0 to 4 min)
• Thrust power: Adjustable on 50 levels
• Terminal board inputs :
• Open, Partial open,
• Safety in opening,
• Safety in closing,
• Stop, Edge,
• Power + Earth,
• Opening and closing limit switches,
• motor condenser

Terminal board outputs :

• Flashing light,
• Motors, Power accessories 24V,
• Indicator Light 24V,
• Timed output,
• Electric lock control,
• Traffic light, Failsafe
• Rapid connector: 5-pin board insertion, MINIDEC, Decoder, or RP receivers
• Protection Fuses: 2
• Operating ambient temperature : -20°C ÷ +55°C

• Sliding gate control board for 230V operators.
