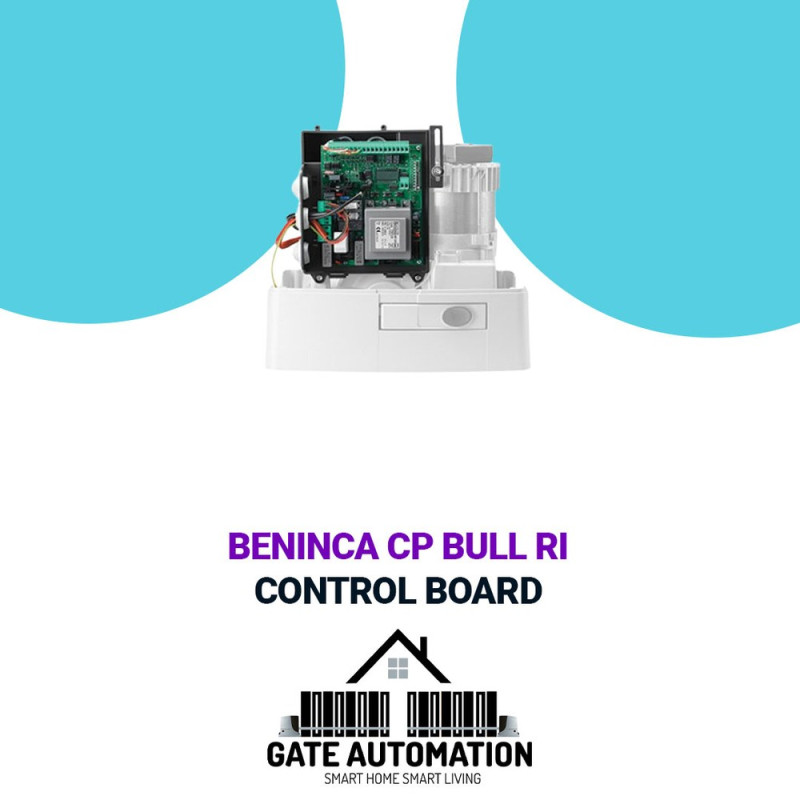

BENINCA CP BULL RI

Product Overview

BENINCA CP BULL RI is included in the IGTS catalogue for gate control-board requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BENINCA CP BULL RI

Technical Information

• 1 BULL10M and BULL15M and BULL20M series sliding actuator.
• CENTRAL POWER SUPPLY
• 230Vac – 50/60Hz
• MOTOR POWER SUPPLY
• 230 Vac

• Integrated LCD display.
• Integrated radio receiver 433.92 MHz 64 codes and 3 radio coding.
• Removable terminal blocks.
• Automatic, semi-automatic, and dead man operating logic.
• Encoder input for obstacle detection.
• Motor limit switch input.
• Stop, open, close, pedestrian, and step-by-step inputs.
• Programmable photocell input (PHOT O) active in both opening and closing or active only in closing.
• Photocell input (PHOT C) is active in both opening and closing.
• Sensitive edge input NC or 8K2.
• Output configurable as open gate warning light, second radio channel, or service light.
• Photocell test output.
• Operating parameters auto-set.
