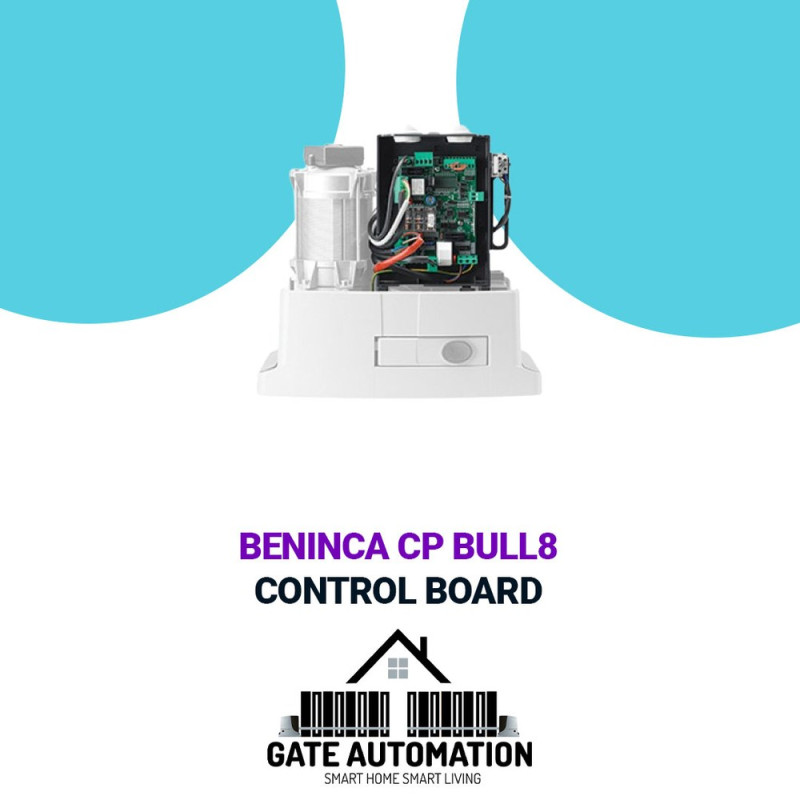

BENINCA CP BULL8

Product Overview

BENINCA CP BULL8 is included in the IGTS catalogue for gate control-board requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BENINCA CP BULL8

Technical Information

MAIN FUNCTIONS:

• Integrated LCD display.
• Integrated radio receiver 433.92 MHz 64 codes and 3 radio codings.
• Removable terminal blocks.
• Automatic, semi-automatic, and dead man operating logic.
• Encoder input for obstacle detection.
• Motor limit switch inputs.
• Stop, step-by-step, pedestrian inputs.
• Programmable photocell input (PHOT O) active in both opening and closing or active only in closing.
• Photocell input (PHOT C) is active in both opening and closing.
• Sensitive edge input NC or 8K2.
• Output for open gate warning light,
• second radio channel, photocell, and service light test.
• Operating parameters auto-set.
• Electronic regulation of engine torque.
• Adjustable slowdowns.
• Electronic braking.
• Possibility of parameter configuration andremotecontrol management with Advantouch.
• system Number of maneuvers.
• Programming access password.
