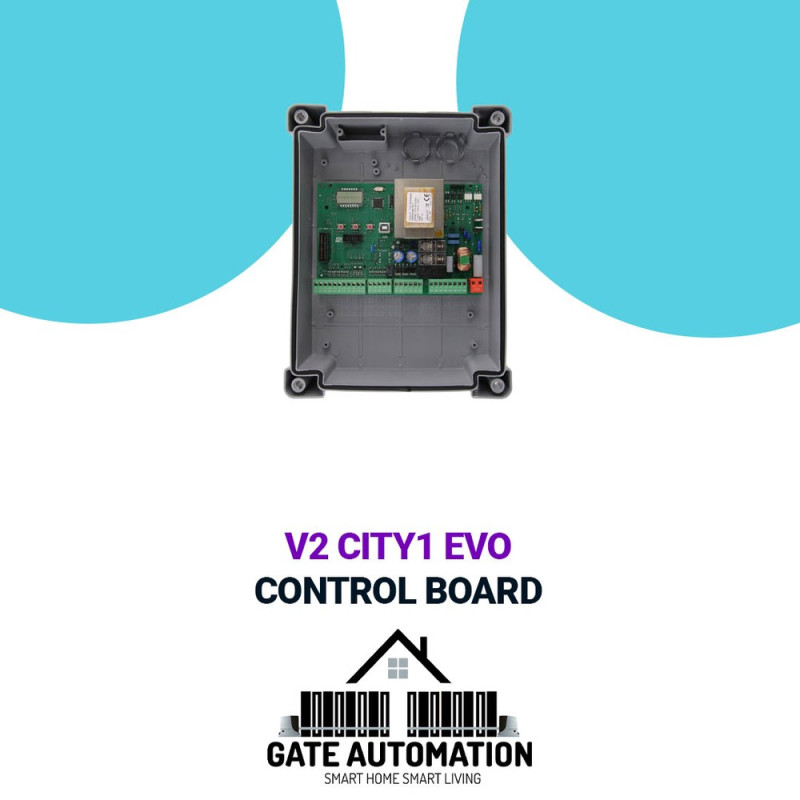

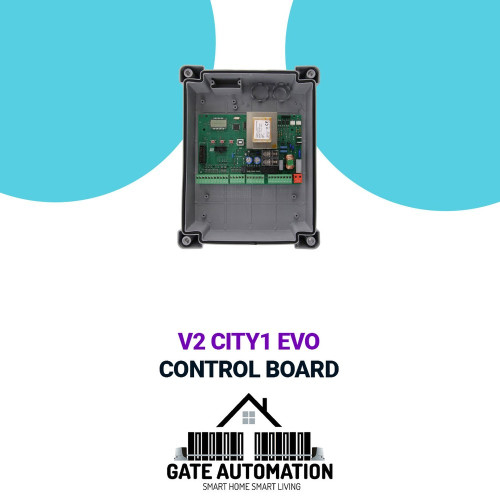

V2 CITY1 EVO

Product Overview

V2 CITY1 EVO is included in the IGTS catalogue for gate control-board requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: V2 CITY1 EVO

Technical Information

• Programming achieved using 3 program buttons and display 230V power supply for 2 single-phase motors equipped with ENCODER
• Plug-in adapter for modular radio receiver MR2
• Start, pedestrian start, and stop controls from the transmitter
• Safety device test before any opening
• 230V flashing light output (use flashing lights with intermittency)
• Self-learning operating time function Obstacle detection function
• Operational cycle counter, with programmable maintenance reminders
• Leaf slow-down function in limit switch area to prevent noisy closures and rebounds
• Slow start function during opening (programmable time)
• Monitoring of input status using the display ADI 2.0 connector for the advanced management of the ADI devices
• USB connector to connect the control unit to a PC and manage through software the programming of the unit, the firmware updates, and the operation diagnostics
• Connector for the LOW ENERGY module that allows saving electrical energy: when the gate is standing the LOW ENERGY module deactivates the display, the photocells, and all the devices power supplied by a terminal box
