SOMMER TWIST 350

Product Overview

SOMMER TWIST 350 is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMMER TWIST 350

Technical Information

• twist 350 rapido set 2-leaf
• twist 350 rapido set 2-leaf 868,95MHz.
• SOMMER version anthracite power plugs Schuko incl. 1x 4019V000.
• Article No. S12713-00001

• Weight (kg): 21.8115
• EAN: 4015862890344
• Goods number: 8479 89 97
• Radiofrequency 1 : 868,950 MHz SOMloq2
• Number of radio memory positions: 40
• IP code: IP 44
• Protection class: I
• Standby: 3,80 W
• Temperature min. : - 30 °C
• Temperature max. : 70 °C
• max. pulling force: 2500 N
• Rated pulling force: 830 N
• Operating time: ED 40% S3
• max. gate weight: 300 kg
• max. gate opening angle: 121 °
• max. gate inclination : 0 %

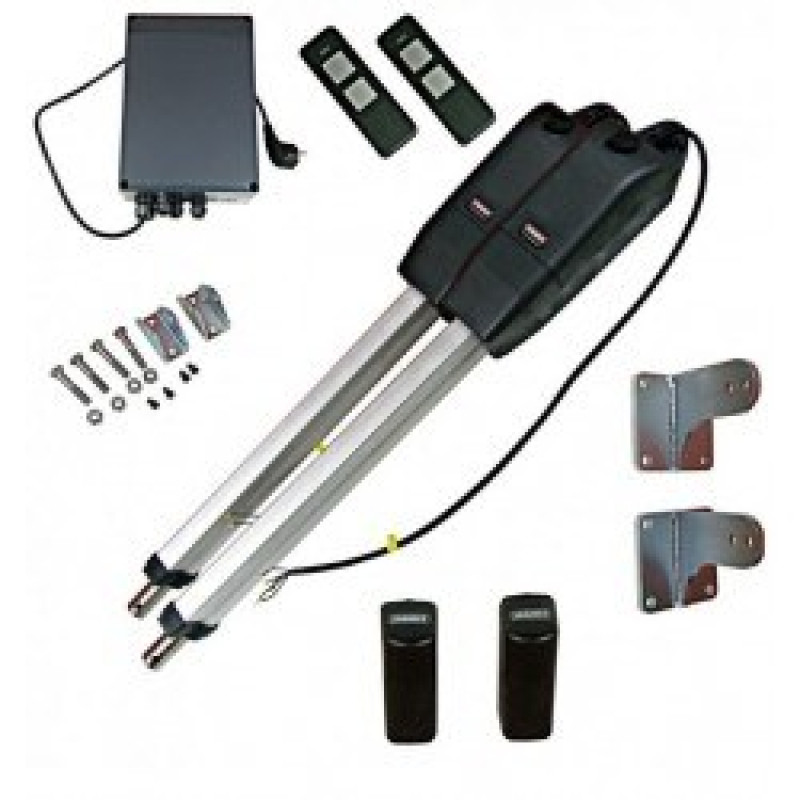

• 2 x twist 350 E swing gate operator.
• 1 x Control unit in housing.
• 1 x Post and hinged double door fittings.
• 1 x Radio receiver SOMup4 FM 868.95 MHz.
• 2 x 4-command handheld transmitter Pearl Vibe.
• 1 x Blinker light.
• 2 x Fixing Bracket.
