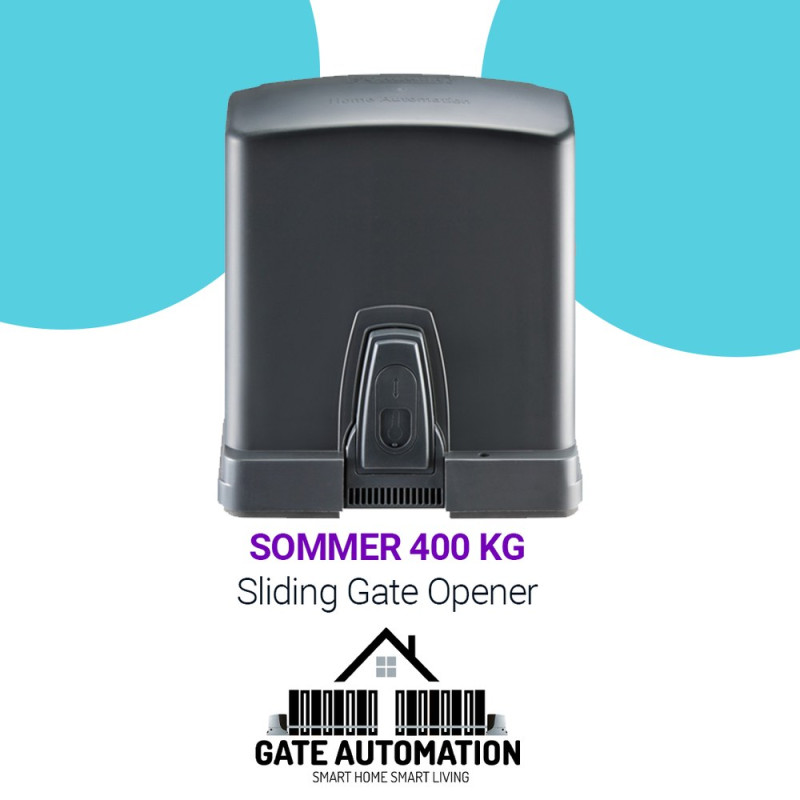

SOMMER 400 KG

Product Overview

SOMMER 400 KG is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMMER 400 KG

Technical Information

• STArter+ set
• FM 868,8MHz SOMMER version.
• anthracite power plugs Schuko incl. 1x4020V000 4x S10861-00001.
• Article No. 3541V000
• STArter sliding gate operator
• Motor control unit with integrated radio receiver (FM 868.8 MHz Somloq Rollingcode)
• Universal mounting base plate (H = 15 mm)
• 4-command handheld transmitter “Classic” (# 4020V000)
• 4 m plastic rack with steel core incl. mounting material (expandable to max. 8,000 mm)

• Weight (kg): 15.7643
• EAN: 4015862024763
• Goods number: 8479 89 97
• Radiofrequency 1 : 868,800 MHz Somloq
• Number of radio memory positions: 112
• Somloq compatible: ja
• IP code: IP 54
• Protection class: I
• Temperature min. : - 20 °C
• Temperature max: 50 °C
• Operating time: ED 30% S3
• max. gate weight: 400 kg
• max. torque: 11 Nm
• max. movement range: 8000 mm
• max. opening speed: 240 mm/s
