Sommer twist 200 E

Product Overview

Sommer twist 200 E is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: Sommer twist 200 E

Technical Information

• • twist 200 E set 2-leaf
  • twist 200 E set 2-leaf 868,95MHz.
  • SOMMER version anthracite power plugs Schuko incl. 1x 4019V000.
  • Article No. S11521-00001
  • two twist 200 E swing gate operator (can be used universally for DIN left and DIN right)
  • Post and gate leaf fitting
  • Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
  • SOMup4 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
  • Slot for Memo memory extension (450 radio commands)
  • Pearl Vibe 4-command handheld transmitter (# 4019V000)
  • Transmitters can be programmed and deleted and information on the radio receiver.

  Technical Data:

  • Weight (kg): 11.7504
  • EAN: 4015862918321
  • Goods number: 8479 89 97
  • Radiofrequency 1 : 868,950 MHz SOMloq2
  • Number of radio memory positions: 40
  • Somloq compatible : nein
  • SOMloq2 compatible: ja
  • IP code: IP 44
  • Protection class: I
  • Standby: 2,90 W
  • Temperature min. : - 30 °C
  • Temperature max. : 70 °C
  • max. pulling force: 2000 N
  • Rated pulling force: 660 N
  • Operating time: ED 15% S3
  • max. gate weight: 300 kg
  • max. gate opening angle: 120 °
  • max. gate inclination: 10,0 %

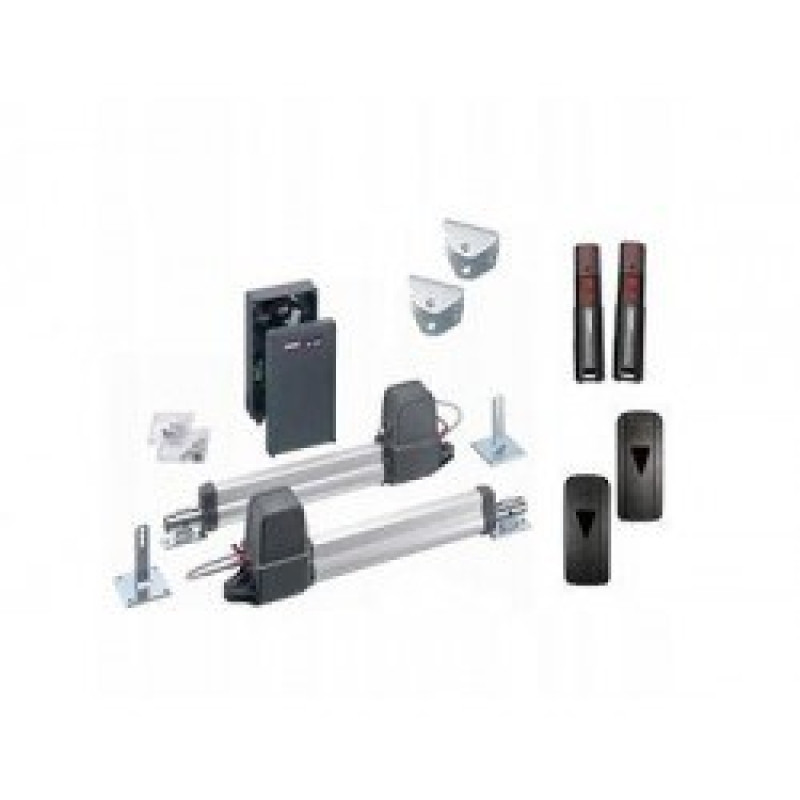

  Kit's Included:


  • 2 x twist 200 E swing gate operator.
  • 1 x Control unit in housing.
  • 1 x Post and hinged double door fittings.
  • 1 x Radio receiver SOMup4 FM 868.95 MHz.
  • 2 x 4-command handheld transmitter Pearl Vibe.
  • 1 x Blinker light.
  • 2 x Fixing Bracket.
