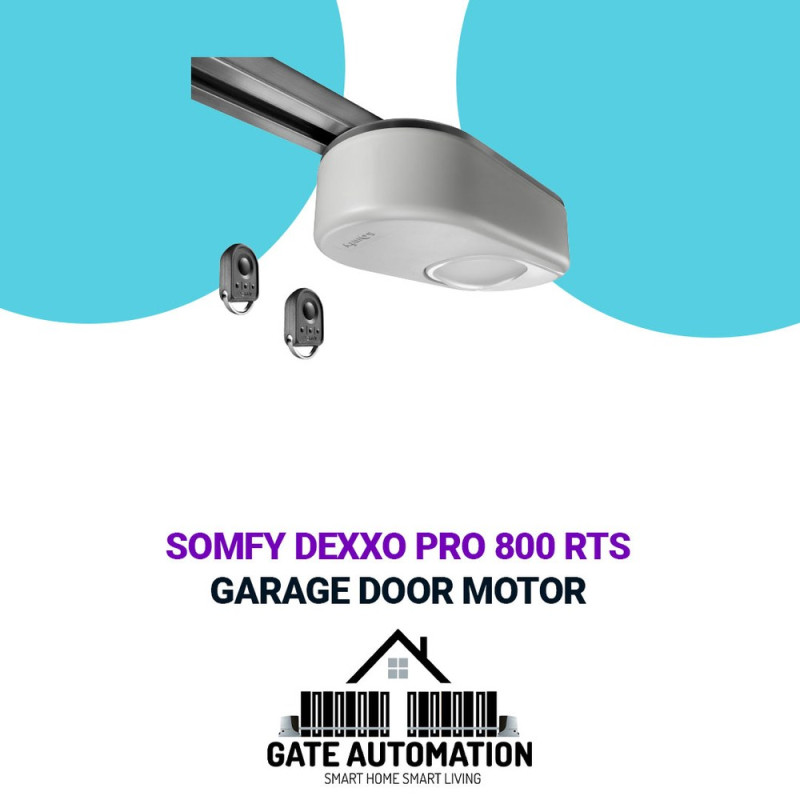

SOMFY DEXXO PRO 800 RTS

Product Overview

SOMFY DEXXO PRO 800 RTS is included in the IGTS catalogue for garage-door automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMFY DEXXO PRO 800 RTS

Technical Information

• Motorized garage door Somfy Dexxo pro 800 rts + 3-meter chain rail in 2 parts
• Motorization kit for garage door SOMFY Dexxo pro 800 rts

• Garage door opening in just 11 seconds for a 2m high door.
• Slowing the speed at the end of opening and closing to preserve the door.

• semi-automatic: opening and closing with a control point.
• automatic: opening with a control point and automatic closing after an adjustable time delay.
• pedestrian: partial opening, at the desired position, for the passage of a pedestrian, a cyclist,
• possible on the side or hinged door.

• Mains supply: 230 V - 50 Hz;
• Power consumption in standby: 5 W;
• Maximum power consumption: 600 W (with 500 Wremotelighting);
• Traction force: 800 N;
• Number of storableremotecontrols: 32;
• SOMFY radio frequency: 433.42 MHz RTS;
• Built-in lighting: 230 V / 40 W max;
• Remote lighting: 230 V / 500 W max;
• Operating temperature: -20°C / +60°C.

• 1 x A motor with electronic board
• 2 x Keygo 4 rtsremotecontrols
• 1 x rail of 2.9m with its chain
• 1 x Fixing accessories.
