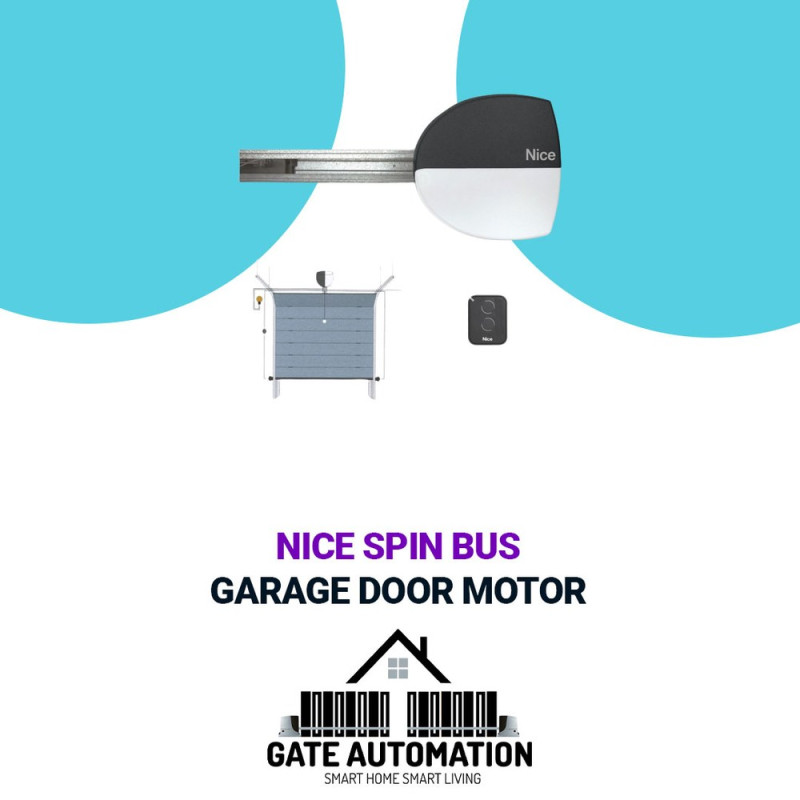

NICE SPIN BUS

Product Overview

NICE SPIN BUS is included in the IGTS catalogue for garage-door automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: NICE SPIN BUS

Technical Information

• SPIN22BDKCE
• Kit for automating sectional doors with belt drive. Recommended for sectional garage doors up to 10.5 m2 and up to 3.4 m high.
• The guide rail with a belt ensures quiet and reliable operation.

• force 650N
• built-in control unit with BLUEBUS technology, allowing you to connect additional devices with just two wires without polarity
• The amperometric obstacle detection system is used to detect possible obstacles that may occur during the normal movement of the gate.
• With this function, in case of an obstacle, the driver will stop the leaf and reverse the direction.
• electronic speed control - adjustable acceleration and deceleration, adjustable at the beginning and end of the maneuver
• when the system is not in use, the drive goes into standby mode, which reduces power consumption
• self-learning mode, during which the drive automatically memorizes the end positions and saves these values ​​in memory with each maneuver
• partial opening function, thanks to which the gate can be opened to a height of 15cm for ventilation,
• or 1m to enter the garage without waiting for the gate to fully open
• Possibility of connecting photocells or latest-generation sensors to increase the level of safety when using the system
• built-in lamp in the control unit, which can be used for additional lighting of the garage
• possibility of connecting signal lamps type.

• For sectional doors up to 12.5m² and up-and-over garage doors up to 11.2m² with Nice BlueBUS technology.
• 230Vac irreversible electromechanical gear motor, for residential use, with belt drive, 24Vdc motor with magnetic encoder.
• Complete with a track in 3x1m pieces.

• Power Supply: 230 Vac 50 Hz
• Motor Voltage: 24Vdc
• Battery backup option: Yes
• Force (N): 800N
• BlueBUS technology: Yes
• Solar Power Option: Yes
• Work Cycle: 50 Cycles/Day
• IP rating: 40
• Operating Limits
• Up and Over Door – Height: 2.2m Width: 3m
• projecting up-and-over door – Height: 2.8m Width: 3m
• Sectional – Height: 2.5m Width: 3.5m.
