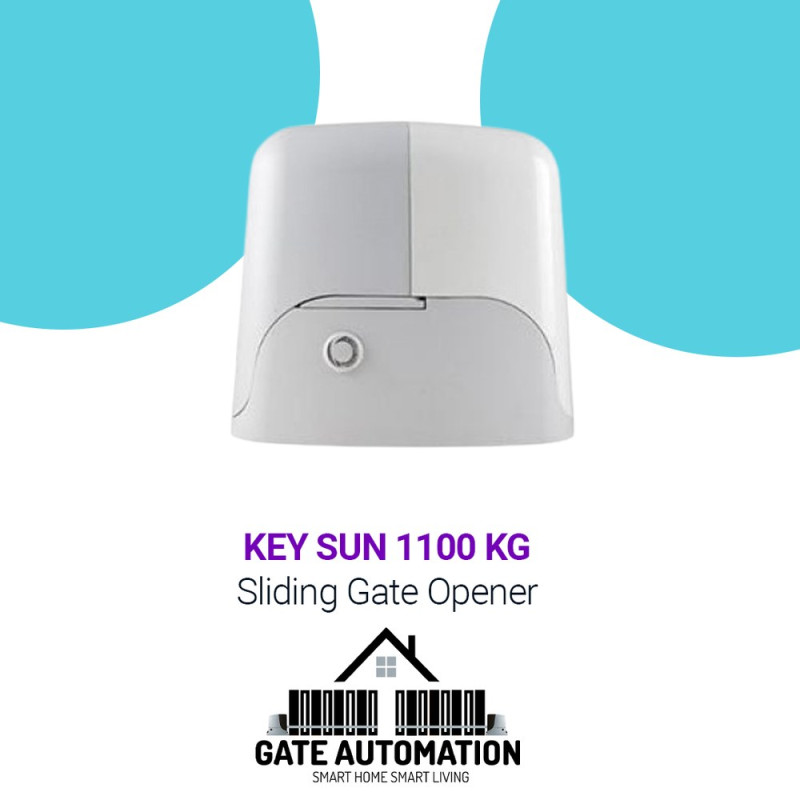

KEY SUN 1100 KG

Product Overview

KEY SUN 1100 KG is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: KEY SUN 1100 KG

Technical Information

• KSUN11024KK.
• Product code : 900KSUN11024KK.
• Speed: 20 cm/s.
• Control unit: 14A.
• Nominal power: 360 W.
• Max leaf weight: 1100 kg.

• 1 x Key Sun 1100 Kg Sliding Gate Motor kit.
• 1 x Integrated control unit.
• 2 x KEY SUB44WF 4-channel transmitter, white colour, XR rolling code 433 MHz.
• 1 x FT33 Pair of photocells for external use and flush mounting.
• 1 x Built-in Receiver.
• 1 x 900ECLIPSE LED flashing, crepuscular sensor, and built-in antenna.
• 1 x 4m Nylon Rack.
• 1 x Push button.

• Speed cm/s : 20
• Torque Nm: 38
• Duty cycle percentage %: 80
• Control unit: 14A
• Voltage Vac: 230
• AC Voltage frequency Hz: 50/60
• Nominal current A: 1,8
• Nominal power W: 360
• Appliance isolation class: I
• Degree of protection IP: 44
• Dimensions (L - D - H) mm: 330 - 210 - 300
• Item kg: 14,9
• Min operating temperature °C: -20
• Max operating temperature °C: +55
• Max leaf weight kg: 1100.
