KEY STAR

Product Overview

KEY STAR is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: KEY STAR

Technical Information

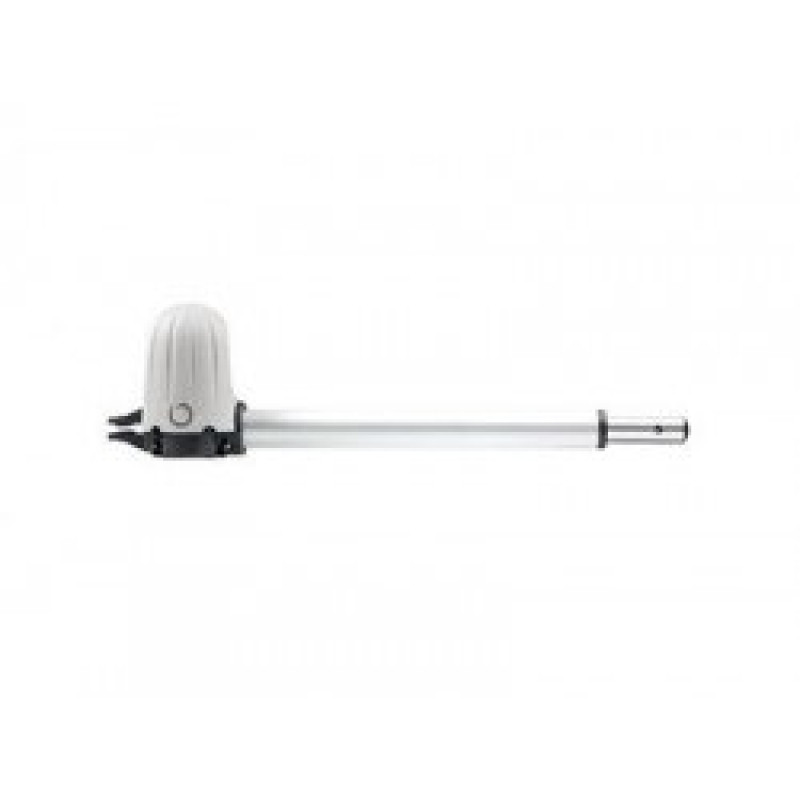

• Key Star Electromechanical irreversible gear motor for swing gates with leaves up to 3 m, 24 Vdc.
• Product code: 900KSTAR3224KS
• Speed: 2,5 cm/s
• Control unit: CT20224
• Nominal power: 85 W
• Max leaf weight: 400 kg
• New motor up to 3 m
• Compatible with new control unit CT20224.

• 1 x Key Star up to 3 m or max 400 kg.
• 1 x 900CT202 Control unit for two 230 Vac motors.
• 2 x SUB44WF 4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver.
• 1 x 900RX4K 4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz.
• 1 x FT33 Pair of photocells for external use and flush mounting.
• 1 x 900LUMY-230E 230 Vac flashing light, with antenna.

• Speed cm/s : 2,5
• 90° Opening time S: 18-25
• Force N: 1400
• Duty cycle percentage %: 80
• Control unit: CT20224
• Voltage Vdc: 24
• Nominal current A: 3,5
• Nominal power W: 85
• Appliance isolation class: I
• Degree of protection IP: 54
• Dimensions (L - D - H) mm: 741 - 115 - 177
• Item kg: 14
• Min operating temperature °C: -20
• Max operating temperature °C: +55
• Max leaf weight kg: 400
• Max leaf length : 3m
