KEY RAY40 600KG

Product Overview

KEY RAY40 600KG is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: KEY RAY40 600KG

Technical Information

• RAY40 Gearmotor for swing gates up to 4 m, 230 Vac.
• Product code: 900RAY40
• Speed: 1,6 cm/s
• Control unit: CT202
• Nominal power: 280 W
• Max leaf weight: 600 kg.

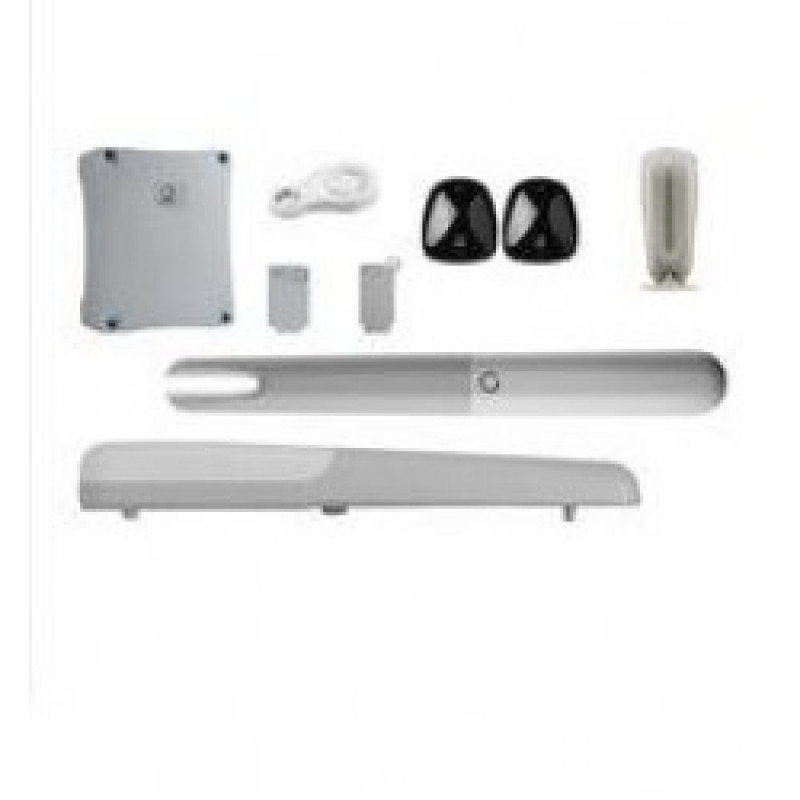

• 1 x RAY40 Gearmotor for swing gates up to 4 m, 230 Vac.
• 1 x 900CT202 Control unit for two 230 Vac motors.
• 2 x SUB44WF 4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver.
• 1 x 900RX4K 4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz.
• 1 x FT33 Pair of photocells for external use and flush mounting.
• 1 x 900LUMY-230E 230 Vac flashing light, with antenna.

• Speed cm/s : 1,6
• 90° Opening time s: 20-25
• Force N: 2000
• Duty cycle percentage %: 40
• Control unit: CT202
• Voltage Vac: 230
• AC Voltage frequency Hz: 50/60
• Nominal current A: 1,2
• Nominal power W: 280
• CapacitorµF: 8
• Thermal protection °C : 150
• Appliance isolation class: I
• Degree of protection IP: 44
• Dimensions (L - D - H) mm: 844 - 100 - 104
• Item kg: 10,2
• Min operating temperature °C: -20
• Max operating temperature °C: +55
• Max leaf weight kg: 600
• Max leaf length m:4
