BENINCA BOB50

Product Overview

BENINCA BOB50 is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BENINCA BOB50

Technical Information

BENINCA BOB50M

• 230 Vac Up to 5.0 m per door leaf.
• Irreversible 230 Vac electromechanical geared motor.
• Reliable, quiet, and quick to install the geared motor.
• thanks to its 2 adjustable mechanical stops for opening and closing.
• Rolled ball screws Ø 20 mm.
• Easy access release from above.
• Beninca Bob50m.
• is the ideal motor gear to install for wrought-iron gates up to 3 m.

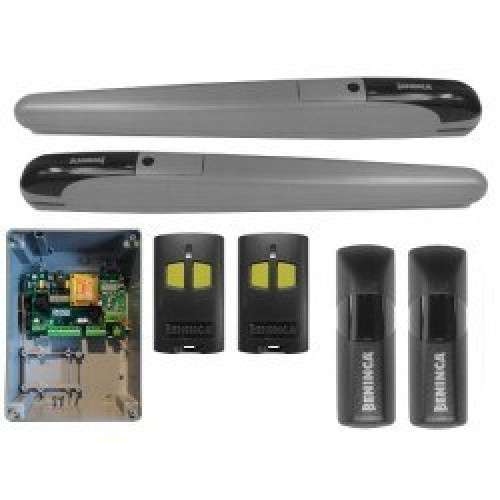

• 2 x BOB50M Swing Gate Motor.
• 1 x HEADY Control unit.
• 1 x PUPILLA.T Pair of adjustable photocells.
• 1 x LAMPY Flashing light with integrated antenna.
• 2 x To Go Remote Control.
• 1 x Push Button.
• 2 x Fixing Bracket.

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 1,4 A
• Maximum thrust: 2500 N
• Opening time: 26”
• Standard stroke: 455 mm
• Max stroke: 520 mm
• Duty cycle: 30%
• Protection level: IP44
• Built-in control unit: no
• Encoder: no
• Operating temperature : -20°C /+50°C
• Lubrication: GREASE
• Leaf max dimension: 3.0 m
• Weight: 11.6 kg
• Kit weight19.6 kg
