BENINCA BILL30M

Product Overview

BENINCA BILL30M is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BENINCA BILL30M

Technical Information

• 230 Vac Up to 2.5 m per door leaf.
• Irreversible 230 Vac electromechanical geared motor.
• Neat design and size, particularly suited to forged iron gates.
• Easy and quick to install due to compact size and installation geometry.
• The worm is protected by a scraper ring and stainless steel stem.
• Suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents.
• Easy access release from above.
• Available in right or left version.

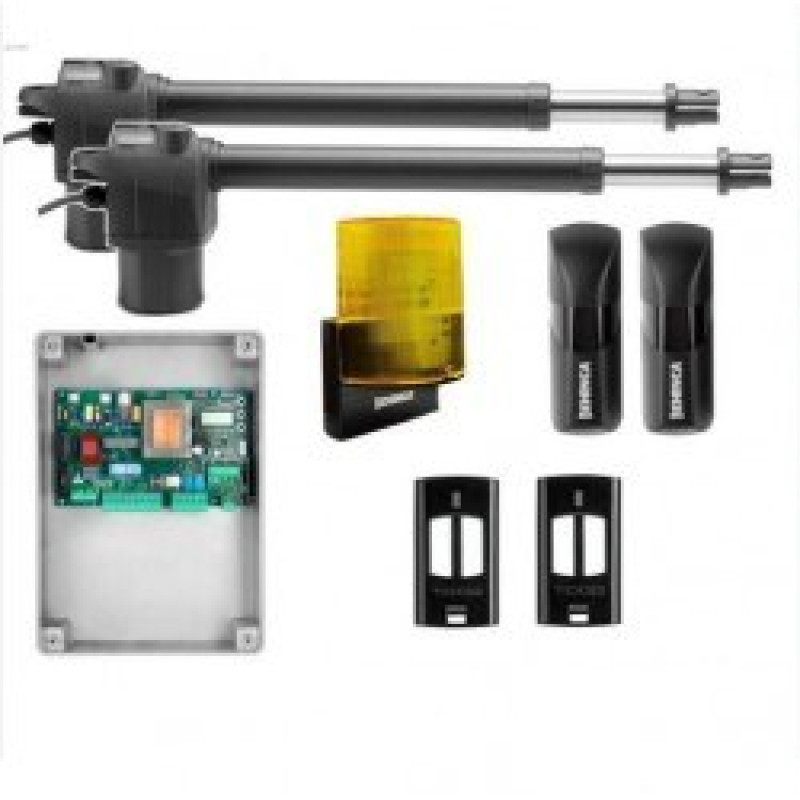

• 2 x BILL30m 230 Vac operator.
• 1 x HEADY 230 Vac control unit.
• 1 x LAMPI.LED 230 Vac LED flashing light.
• 1 x PUPILLA.R Pair of fixed photocells PUPILLA.R.
• 2 x To go Remote control.
• 2 x Fixing Bracket.
• 1 x Exit Push Button.
• 2 x Manual release keys.

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 1.1 A
• Maximum thrust: 2800 N
• Opening time: 16"
• Standard stroke: 300 mm
• Max stroke: 320 mm
• Duty cycle: 30%
• Protection level: IP54
• Built-in control unit: no
• Encoder :
• Operating temperature : -20°C /+50°C
• Lubrication: GREASE
• Leaf max dimension: 2.5 m
• Weight: 6.1 kg
• Kit weight14.6 kg.
