Universal Sensor

Product Overview

Universal Sensor is included in the IGTS catalogue for gate automation accessory requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: Universal Sensor

Technical Information

Product Description:

High Quality, need to connect with an alarm system as it can’t work alone

Can work with access control system, security alarm system, Automatic

Gate Control System and so on

Professional anti-interference optical cover, unique digital filter

Circuit desi Anti-glare up to 50,000LUX, built-in automatic adjustment

Of light filter system, to avoid the impact of light or car lights,

All-weather sealed (rain), dust (insects), and other all-weather

Integration of the structure designed to work in harsh environments

How to use:

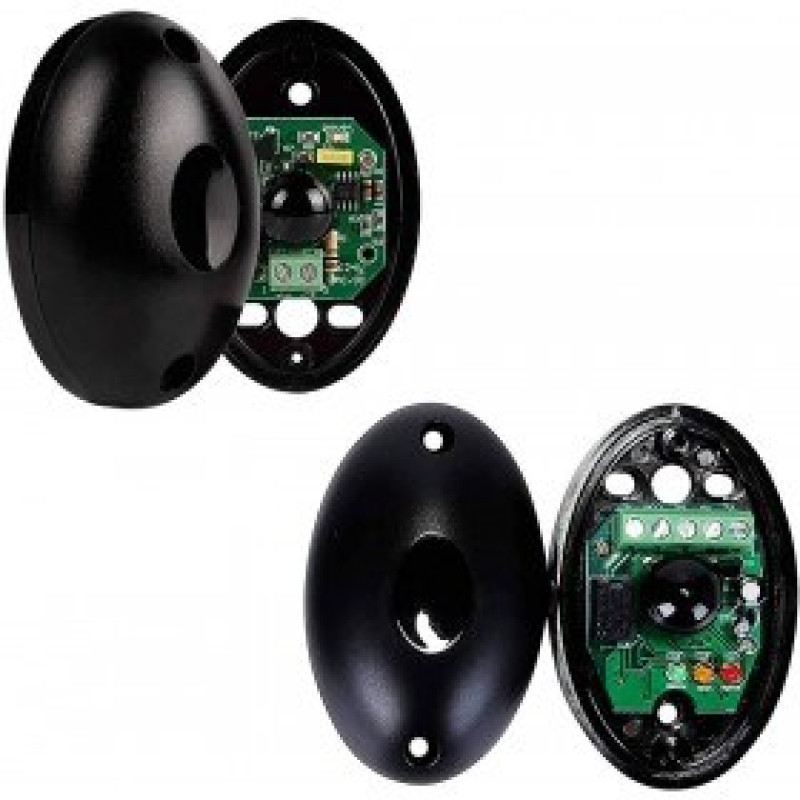

This is an Active Infrared Detector. Install each pair at the opposite

Positions. Then there is an infrared area between these two detector

Parts. When someone passes the infrared region, the detector will send

Alarm signal to the security alarm host (which is not included here).

Specifications:

Receiver range: less than 15m

Infra-red frequency: 1.92KHZ

Power supply: 12V DC

Wavelength: 940nm

Input: RX 15mA-TX 30mA

Size (Each One): 3″ x 1.9″ x 1.2″ (L*W*H)

Operating temperature: -20-70 C

Relay output: 1A max 30V

Net weight: 120g

Package content:

1 x Infrared sensor (transmitter & receiver)

1 x Some Mounting screws

1 x English Usage Manual
