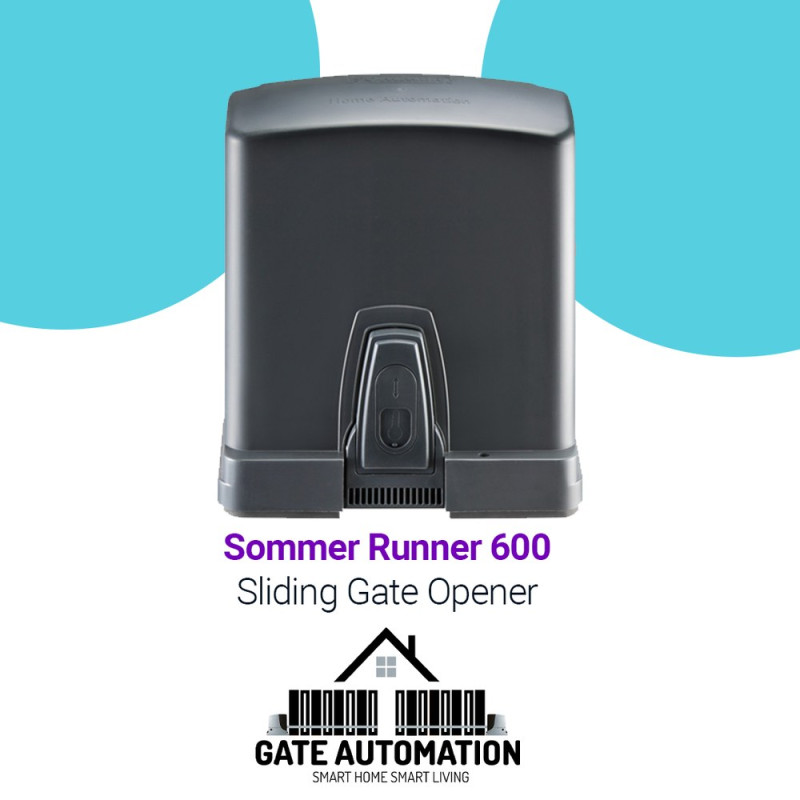

Sommer Runner 600

Product Overview

Sommer Runner 600 is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: Sommer Runner 600

Technical Information

Sommer Runner 600 KG

• Runner set.
• The powerful SOMMER sliding gate operator for gates with 8 m width has a gate weight of 600 kg.
• RUNner set 868,95 MHz.
• SOMMER version anthracite power plugs Schuko.
• incl. 1x 4019V000 4x S10861-00001.

Technical Data:

• Weight (kg): 18.5151
• EAN: 4015862912787
• Goods number: 8479 89 97
• Radiofrequency 1 : 868,950 MHz SOMLoq2
• Number of radio memory positions: 40
• Somloq compatible : nein
• SOMloq2 compatible: ja
• IP code: IP 54
• Protection class: I
• Temperature min. : - 30 °C
• Temperature max. : 50 °C
• Operating time: ED 40% S3
• max. gate weight: 600 kg
• max. torque: 20 Nm
• max. movement range: 8000 mm
• max. opening speed: 210 mm/s.

What’s Included

• 1 x Runner 600 kg Motor.
• 1 x Integrated control unit.
• 2 x Remote control.
• 1 x Pair of Photocells.
• 1 x Receiver.
• 1 x Blinker Light
• 1 x 4m Nylon Rack.
