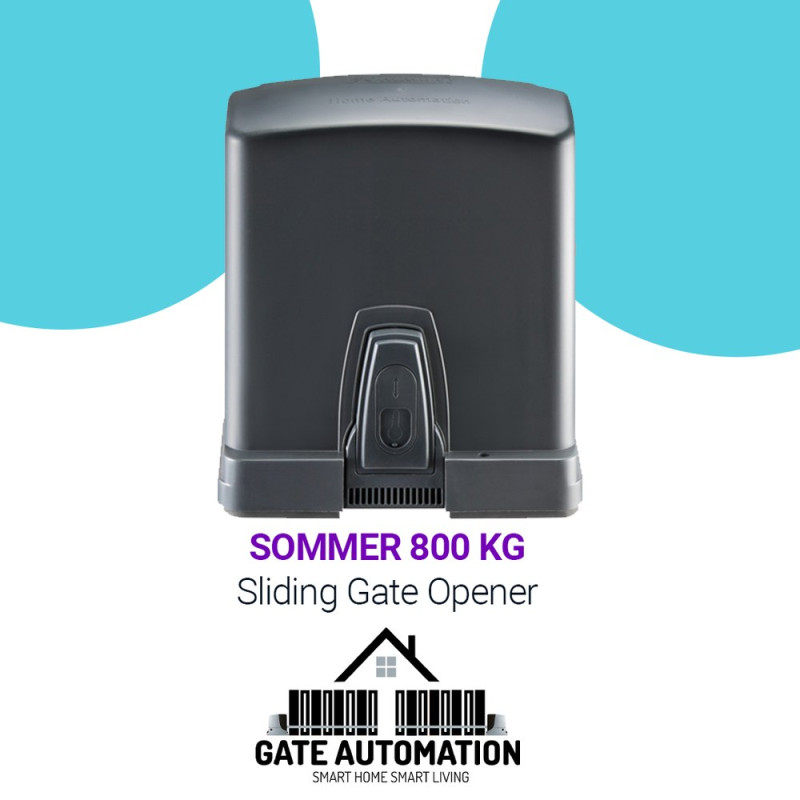

SOMMER 800 KG

Product Overview

SOMMER 800 KG is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMMER 800 KG

Technical Information

• Runner set.
• The powerful SOMMER sliding gate operator for gates with 12 m width and a gate weight of 800 kg.
• RUNner set 868,95 MHz.
• SOMMER version anthracite power plugs Schuko.
• incl. 1x 4019V000 4x5825V00.

Technical Data:

• Weight (kg):23.0791
• EAN:4015862912770
• Goods number: 8479 89 97
• Radiofrequency 1 : 868,950 MHz SOMLoq2
• Number of radio memory positions: 120
• Somloq compatible : nein
• SOMloq2 compatible: ja
• IP code: IP 54
• Protection class: I
• Temperature min. : - 30 °C
• Temperature max. : 50 °C
• Operating time: ED 40% S3
• max. gate weight: 800 kg
• max. torque: 28 Nm
• max. movement range: 12000 mm
• max. opening speed: 190 mm/s.

What’s Included

• 1 x Runner 800 kg Motor.
• 1 x Integrated control unit.
• 2 x Remote control.
• 1 x Pair of Photocells.
• 1 x Receiver.
• 1 x Blinker Light
• 1 x 4m Nylon Rack.
