SOMFY IXENGO JL 230V
Request a Quote
Pricing can depend on quantity, installation scope, accessories, site condition and location.
Product Overview
SOMFY IXENGO JL 230V is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.
Model: SOMFY IXENGO JL 230V
Technical Information
- Supply, installation, repair and maintenance support available
- Support for gate motors, parking barriers, remotes, sensors, access control, CCTV and intercom systems
- Gate weight: 300kg, length: to 4m
- Opening time up to 90°: 7-22s
- Power supply/motor power supply: 230V/230V
- possibility to set operating parameters
- the non-retractable mechanism ensures very high resistance
- to heavy-pressure wind and attempted forcible opening
- easy and safe disengagement with individual key
- adjustable torque value.
- main power: 220-230 V
- motor power supply: 230 VDC
- power supply for external lighting: 230V-60W
- accessory power supply: 24 V DC / 350 mA
- drive force: 3000N
- opening time to 90 ° without slowing area and maximum speed: 7 to 22 seconds
- Number of storableremotecontrol devices: max. 128 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 54

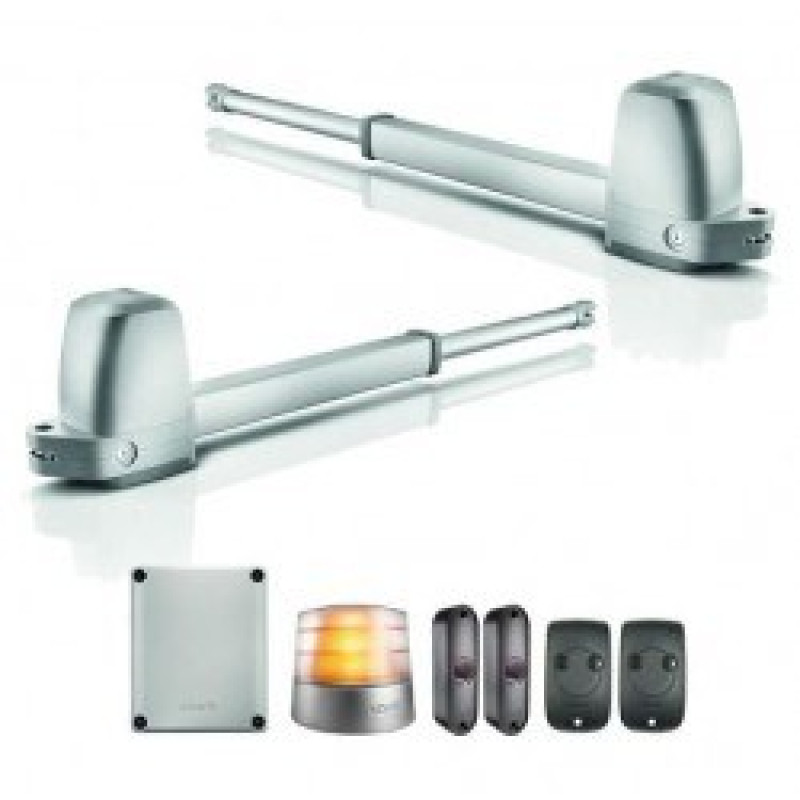

- 2 x actuator Ixengo JL 230V
- 1 x switch CB 230 RTS
- 2 x Keytis RTS 2-channelremotecontrol
- 1 x lamp ECO Pro 230V
- 1 x Pair of Master Pro photocells - Bitech
- 1 x Push Button
Supply, Installation & UAE Support
Contact IGTS for current availability, product compatibility, installation, replacement or maintenance. For an existing system, send clear photos of the model label and control equipment. For a new project, share the location, approximate dimensions and intended use.
Related service information · UAE coverage · Request a quotation
IGTS UAE Support
For supply-only, replacement, installation or maintenance, send the product model, quantity, project location and site photos where applicable.
