SOMFY IXENGO 3M 250KG

Product Overview

SOMFY IXENGO 3M 250KG is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMFY IXENGO 3M 250KG

Technical Information

• Gate weight: 250kg, length: to 3m
• Opening time up to 90°: 7-19s
• 2 Keytis RTS 2-channelremotecontrols, lamp, photocell set
• Semi-intensive use
• Power supply/motor power supply: 230V/230V
• Somfy Ixengo JS 230V RTS ECO Comfort Pack,
• set for swing gates of 250 kg weight per gate leaf (1216546).
• Special application for installation: Fix & Go

• possibility to set operating parameters
• the non-retractable mechanism ensures very high

• resistance to heavy pressure wind and attempted forcible opening.
• easy and safe disengagement with individual key
• adjustable torque value.

• main power: 220-230 V
• motor power supply: 230 VDC
• power supply for external lighting: 230V-60W
• accessory power supply: 24 V DC / 350 mA
• drive force: 3000N
• opening time to 90 ° without slowing area and maximum speed: 7 to 19 seconds
• Number of storableremotecontrol devices: max. 128 channels
• working temperature: -20 ° C to +60 ° C
• security class: IP 54

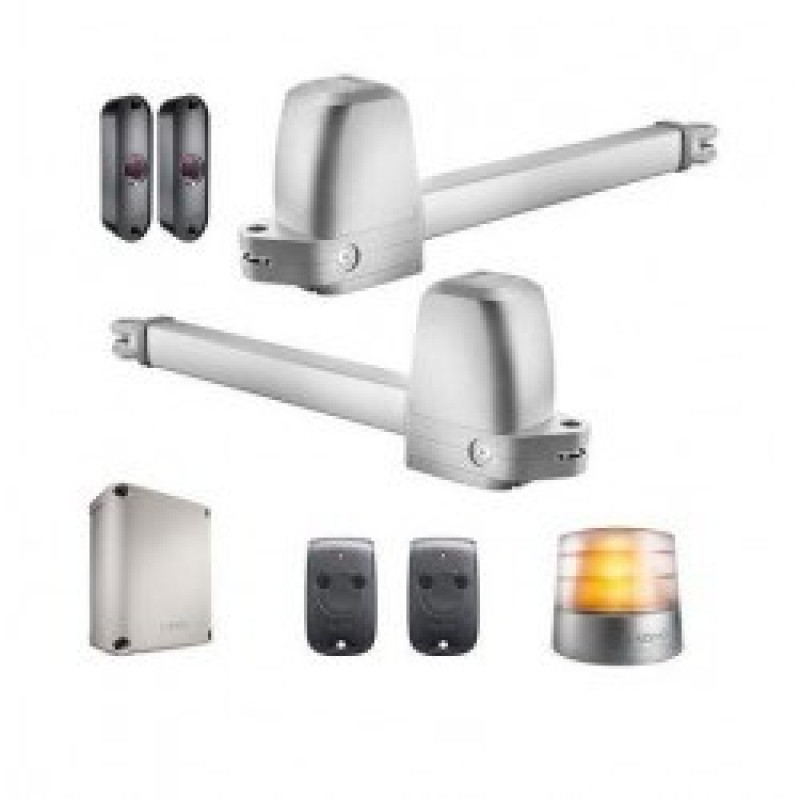

• 2 x Actuator Ixengo JS 230V.
• 1 x switch CB 230 RTS.
• 2 x Keytis RTS 2-channelremotecontrol.
• 1 x Lamp ECO Pro 230V
• 1 x Set of Master Pro photocells Bitech.
• 1 x Push Button.
