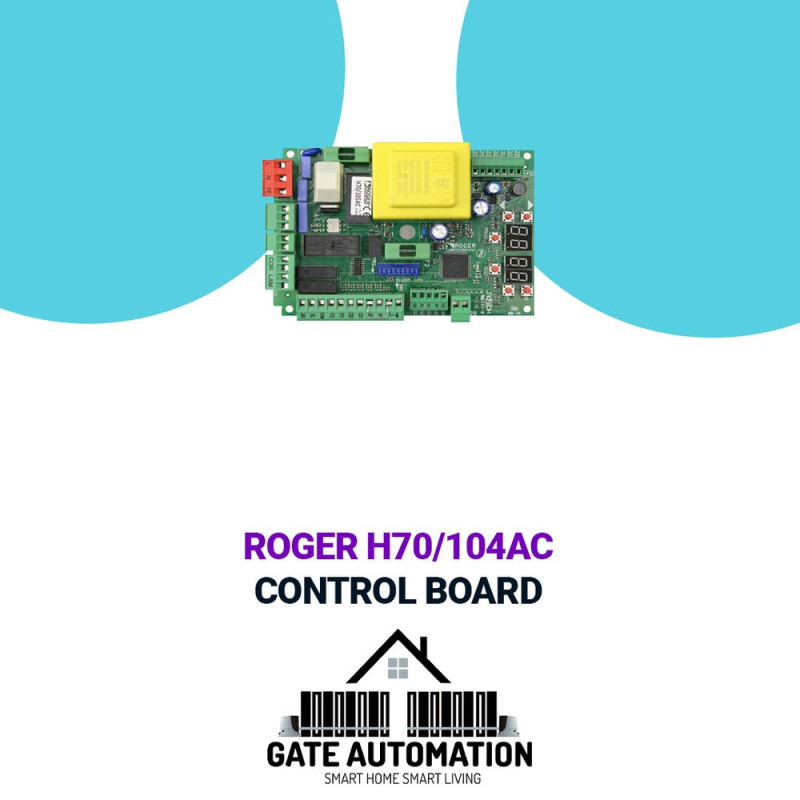

ROGER H70/104AC
Request a Quote
Pricing can depend on quantity, installation scope, accessories, site condition and location.
Product Overview
ROGER H70/104AC is included in the IGTS catalogue for gate control-board requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.
Model: ROGER H70/104AC
Technical Information
- Supply, installation, repair and maintenance support available
- Support for gate motors, parking barriers, remotes, sensors, access control, CCTV and intercom systems
- H70/104AC
- Control unit for 1 motor 230V AC 50/60Hz with slow down.
- Power line supply: 230V AC - 50Hz
- Operating temperature: -10+55 C°
- Protection level: IP56
- N. motors activated: 1 asynchronous monophase
- Max power per motor: 600W (230V AC)
- Max courtesy light charge : 100W 230Vac - 25W 24Vac/dc
- Max power gate open light: 2W 24Vac
- Max voltage accessories output: 300mA - 24Vcc
- Max flashing light charge : 440W 230Vac - 25W 24Vac/dc
- Maximum dimension product in mm (L x W x H) : 200 x 255 x 99
- Product weight packed (Kg): 2.
Supply, Installation & UAE Support
Contact IGTS for current availability, product compatibility, installation, replacement or maintenance. For an existing system, send clear photos of the model label and control equipment. For a new project, share the location, approximate dimensions and intended use.
Related service information · UAE coverage · Request a quotation
IGTS UAE Support
For supply-only, replacement, installation or maintenance, send the product model, quantity, project location and site photos where applicable.
