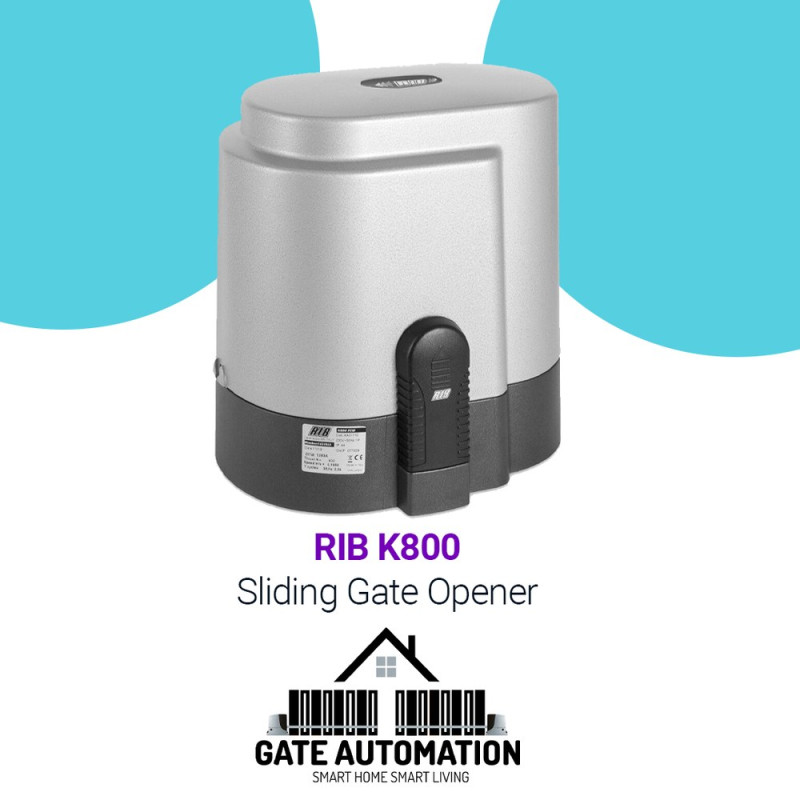

RIB K800

Product Overview

RIB K800 is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: RIB K800

Technical Information

RIB K800 KG

• K800 Kit up to 800 kg.
• Equipped with a built-in control board, without a radio receiver, with a gradual start,
• electronic adjustment of the force, soft-stop in approaching, and electronic brake (as standard features).
• All the K operators allow a slow-down of the gate when approaching, giving the traveler a greater impression of safety and fluidity.
• K800 24V FCM FAST can do 30 cycles with 2 2.2Ah batteries during a blackout.
• Release with a personalized key or Allen key.
• L1-CRX: Pedestrian opening command. Photocells autotest as required by EN 12453:2017.
• Built-in heating system with ACG4665 to withstand -30°C.
• In the L1-CRX control board, the memory of theremotecontrol codes can be removed to facilitate maintenance.
• The L1-CRX control board can manage up to 1000 SUN or SUN PROremotecontrols.
• L1-CRX control panel can be managed by the Bluetooth cards APP or APP+.

• 1 x RIB K800 operator equipped with L1-CRX control board.
• 1 x SUN 2CH 2-channel transmitter.
• 1 x pair of FIT SIM photocells.
• 1 x SAIL blinker
• 1 x warning plate and instructions manuals.
• 1 x Push button.
• 4 x Nylon rack 1m
