FAAC 844 1800 KG

Description

Command the largest residential and commercial gateways with the industrial-strength FAAC 844 1800 KG gate motor. Installed by IGTS Technical Services, this powerful 230V Italian gearmotor is engineered for massive sliding gates up to 1800 kg and 40 meters wide. It is the definitive solution for large estates, industrial facilities, and high-security commercial sites across Dubai, Abu Dhabi, and Sharjah, delivering exceptional power, superior safety, and a very high duty cycle for constant operation.

Extreme Power and Unmatched Duty Cycle

This industrial-grade sliding gate motor is built for the most demanding applications. First, its powerful asynchronous motor and high torque (37 Nm) provide smooth operation for very large and heavy gates. A key performance feature is its extremely high 70% duty cycle. Therefore, it is designed for near-continuous operation, making it perfect for sites with constant traffic like logistics centers or large communal entrances.

Advanced Dual Safety System for Maximum Protection

Safety at this scale is critical. The FAAC 844 1800 KG incorporates FAAC’s renowned twin-disk oil-bath clutch combined with a magnetic encoder. Because of this dual mechanical and electronic system, it offers the highest level of anti-crushing protection. The magnetic limit switch ensures precise stopping, while adjustable mounting allows for a perfect installation fit on substantial gate structures.

Key Industrial Performance & Safety Features:

• Very high 70% duty cycle for constant, heavy use.

• Dual Safety System: Twin-disk oil-bath clutch + Magnetic encoder.

• High torque (37 Nm) for gates up to 1800 kg and 40m wide.

• Magnetic limit switch and adjustable mounting for precision.

• IP44 protection and thermal cut-out (120°C) for reliable operation.

Complete Industrial-Grade Installation Kit

We provide the FAAC 844 1800 KG as a complete, industrial-grade kit. As a result, our project teams can deploy a full, robust system. The kit includes specialized components like a foundation plate for aluminium columns, long-range photocells, and dual plug-in receivers for comprehensive coverage.

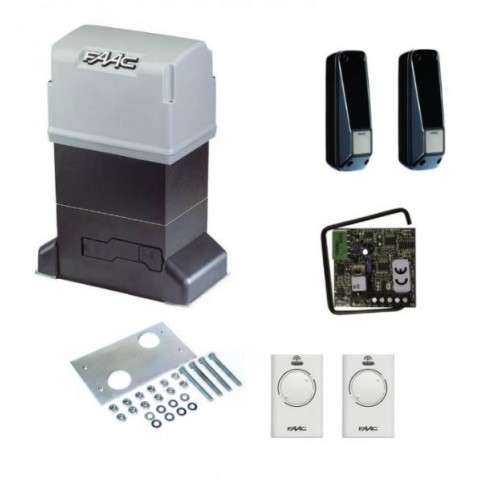

Your Complete Industrial Kit Includes:

• 844 E R Z16 Gearmotor with Incorporated 780D Control

• Two Plug-in Receivers (RP 433) for extended range

• 2-Channel Transmitter (XT2 433)

• Pair of Long-Range Safety Photocells (XP 30)

• XLED Flashing Light, Lock with Key, Push Button, Foundation Plate, and Nylon Rack (4m)

Built for Non-Stop Operation in Harsh Conditions

This motor is engineered to excel. Its robust construction allows it to perform reliably in temperatures from -20°C to +55°C. It is the ultimate choice for large-scale, high-use applications where power, safety, and uptime are non-negotiable.

Main Technical Specifications:

• Max Gate Weight: 1800 kg

• Max Leaf Width: Up to 40 meters

• Motor Power: 220-240V AC, 660W

• Duty Cycle: 70% (For near-continuous operation)

• Safety System: Twin-disk oil-bath clutch + Magnetic Encoder.

• Protection: IP44

The Industrial Powerhouse for Mega-Gates

In summary, the FAAC 844 1800 KG gate motor is the pinnacle of large-scale gate automation. Partner with IGTS for expert project installation. We provide a powerhouse system that combines immense strength, the highest safety standards, and the capacity for relentless, daily use.
