PD-232 LOOP DETECTOR

Product Overview

PD-232 LOOP DETECTOR is included in the IGTS catalogue for gate automation accessory requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: PD-232 LOOP DETECTOR

Technical Information

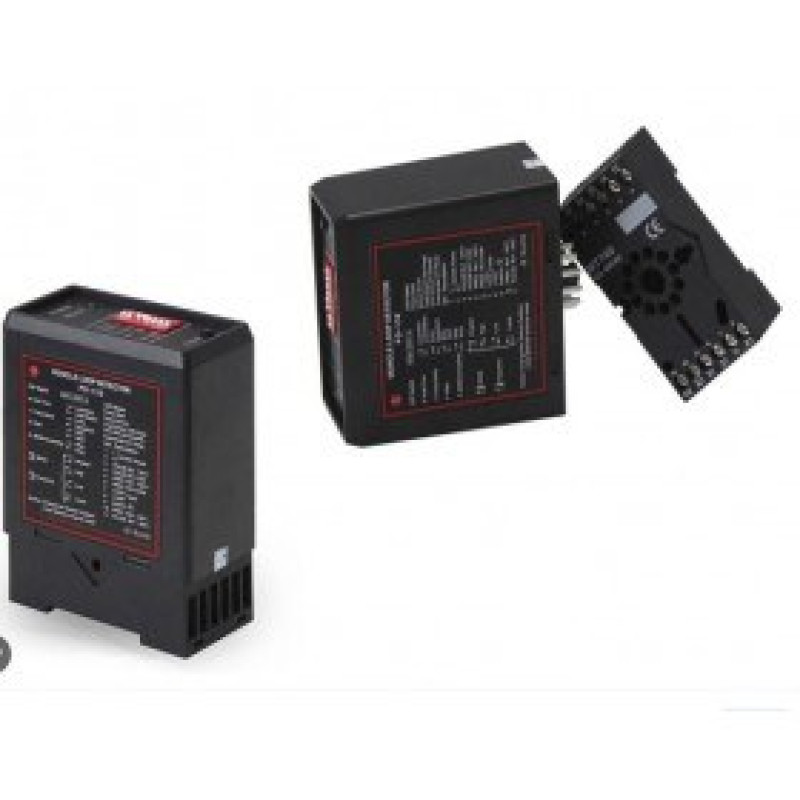

PD 232 Vehicle Loop Detector in

• Model No: PD-232
• PD-132 Inductive Vehicle Single Loop Detector for Gate Barrier,

Technical Data:

• Supply voltage： 230V AC,
• Voltage tolerance AC: +10% / -15%
• Voltage tolerance DC: ±15%
• Power Consumption: 4.5VA
• Output relays: 240V/5A
• Operating temperature: -20°C to +65°C
• Storage temperature: -40°C to +85°C
• Frequency range: 20 kHz to 170 kHz
• Reaction time: 10ms
• Signal holding time: Unlimited/limited when the loop is permanently covered 10 minutes
• Sensitivity: Adjustable in 4 increments
• Loop inductance: Total loop plus connection wiring: 50μH to 1000μH.
• Ideal is 100μH to 300μH
• Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter.
• Size of Housing: 78x40x108 mm (L x W x H)

• Model No: PD-232
• PD-132 Inductive Vehicle Single Loop Detector for Gate Barrier,

• Supply voltage： 230V AC,
• Voltage tolerance AC: +10% / -15%
• Voltage tolerance DC: ±15%
• Power Consumption: 4.5VA
• Output relays: 240V/5A
• Operating temperature: -20°C to +65°C
• Storage temperature: -40°C to +85°C
• Frequency range: 20 kHz to 170 kHz
• Reaction time: 10ms
• Signal holding time: Unlimited/limited when the loop is permanently covered 10 minutes
• Sensitivity: Adjustable in 4 increments
• Loop inductance: Total loop plus connection wiring: 50μH to 1000μH.
• Ideal is 100μH to 300μH
• Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter.
• Size of Housing: 78x40x108 mm (L x W x H)
