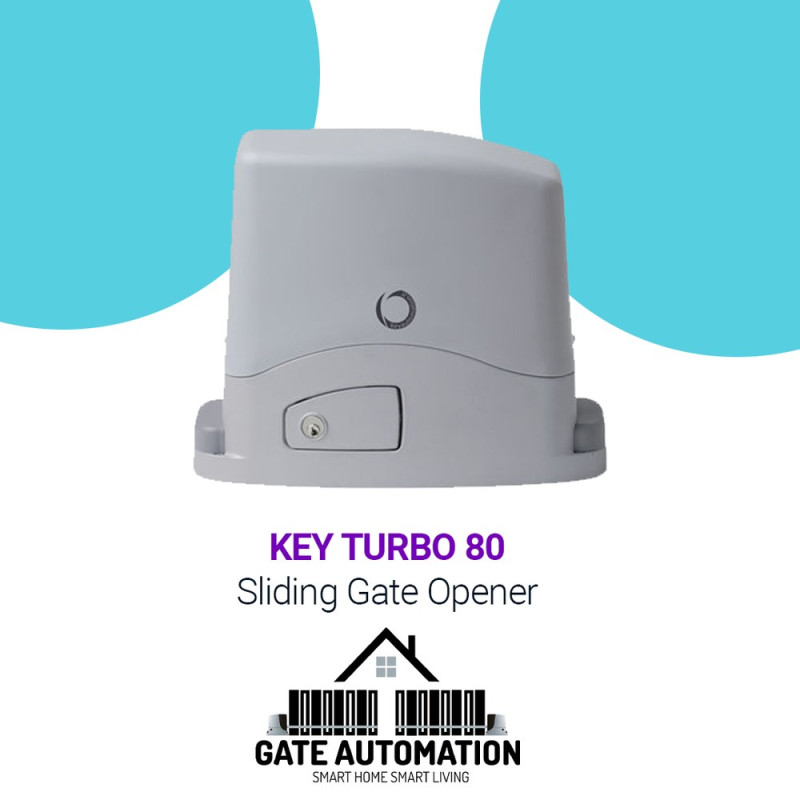

KEY TURBO 80

Product Overview

KEY TURBO 80 is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: KEY TURBO 80

Technical Information

KEY 800 KG

• Product code: 900KSC82ES
• Speed: 16 cm/s
• Control unit: CT102B
• Nominal power: 450 W
• Max leaf weight: 800 kg.

• Speed cm/s : 16
• Torque Nm: 23
• Duty cycle percentage %: 30
• Control unit: CT102B
• Voltage Vac: 230
• AC Voltage frequency Hz: 50/60
• Nominal current A: 1,89
• Nominal power W: 450
• Appliance isolation class: I
• Degree of protection IP: 44
• Dimensions (L - D - H) mm: 320 - 184 - 260
• Item kg: 13.6
• Min operating temperature °C: -20
• Max operating temperature °C: +55
• Max leaf weight kg: 800

• 1 x Sliding gates up to 800 Kg, 230 Vac.
• 1 x CT102 control unit.
• 2 x KEY 900SUB44WR 4-channel transmitter, white color, XR rolling code 433 MHz
• 1 x 900FT33 Pair of photocells for external use and flush mounting.
• 1 x Built-in Receiver.
• 1 x 900LUMY-230E 230 Vac flashing light, with antenna.
• 1 x 4m Nylon Rack.
