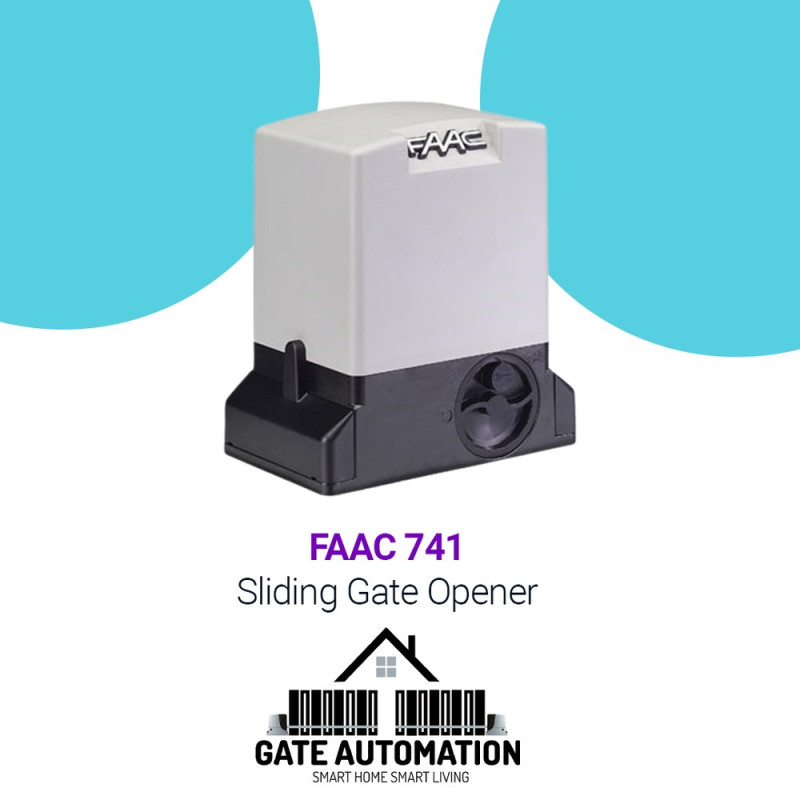

FAAC 741

Product Overview

FAAC 741 is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: FAAC 741

Technical Information

FAAC 741 900 KG

• 741 230V Gearmotor.
• Max. leaf weight 900 Kg.
• Max speed 12 m/min.
• Use frequency 40%.
• Easy programming thanks to the display and the prewired control unit
• Magnetic limit switch.
• Integrated encoder with reverse function upon obstacle detection and specific management in opening and slow down.

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: Asynchronous single-phase
• Max. power: 500 W
• Max. torque: 24 Nm (*)
• Max expressed force: 650 N (*)
• Reduction ratio: 1:25
• Max. leaf width: 15 m
• Leaf speed: 12 m/min :
• Speed adjustment and motor control: No
• Limit switch: Magnetic
• Pinion : Z16 module 4
• Encoder: Optical encoder
• Force adjustment: Via electronic control board
• Operating ambient temperature : -20°C ÷ +55°C
• Thermal protection: 140°C
• Protection class: IP44
• Weight: 11 kg
• Dimensions (LxDxH) : 295 x 181 x 320 mm
• Max. leaf weight: 900 Kg
• Use frequency : S3 – 40%
• Electronic equipment
• 740D incorporated.

• 1 x 741 E Z16 Gearmotor with electronic control unit and integrated encoders.
• 4 x Nylon Rack 1 meter.
• 1 x Plug-in receiver 1 channel RP 433 SLH.
• 1 x XLED flashing light.
• 1 x Lock with key.
• 1 x Pair of photocells XP 20D.
• 1 x 2 channels transmitter XT2 433 SLH LR.
• 1 x Push button.
