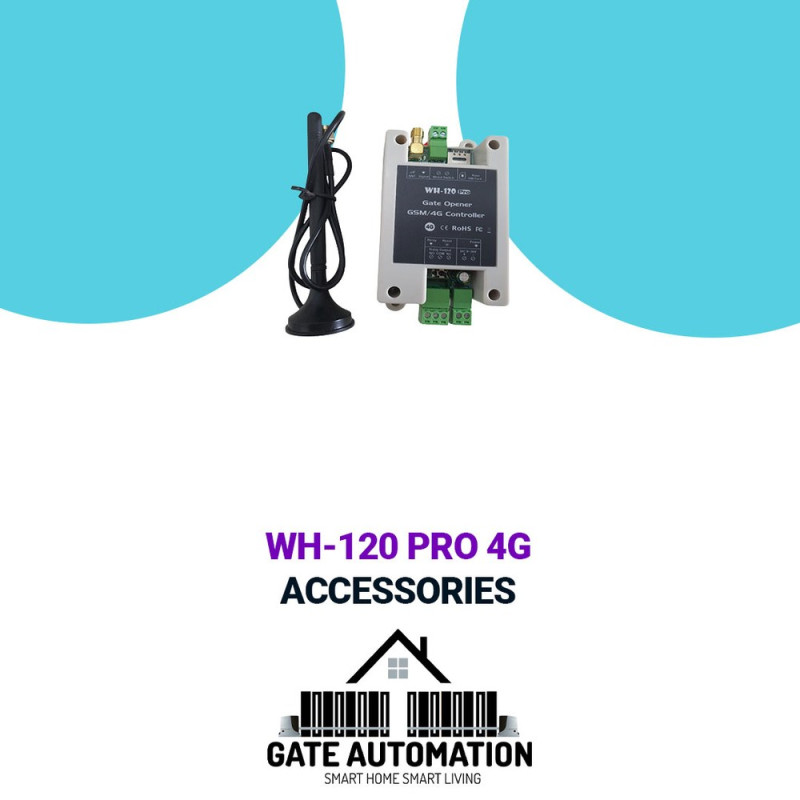

WH-120 PRO 4G

Product Overview

WH-120 PRO 4G by OTHER is included in the IGTS catalogue for gate automation accessory requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: WH-120 PRO 4G

Technical Information

Model:WH-120 4G GSM

Features:

• 4G GSM network communication, no distance limitation, can be used anywhere.
• Works with a Nano SIM card, users can dial the SIM card number to open the door.
• No phone charges, no distance limits, and no key fobs.
• More convenient and friendly than any other solution.
• No call charges. The GSM 4G Gate Opener rejects the call from an authorized number,
• It is no longer traditional to open the door,
• but it is more interesting to shake the mobile phone to unlock the door.
• Multiple applications. (gates, bollards, barriers, garage doors)
• Secure - Using caller ID for identification, unknown callers are ignored;
• Can be operated from anywhere, no distance limit;
• Add or remove users by SMS Text command;
• No need to provide aremotecontrol for different users;
• Up to 200 or 1200 authorized phone numbers can be configured;
• One output with relay （3A/240VAC）for connecting the switch of the door or machines;
• The relay action will return an SMS confirmation to the owner, this function is editable by the user;
• Based on GSM Network, applied to many applications.

Specifications:

• Rated Voltage: DC 9V~36V/1A
• Working temperature: -10℃～+60℃
• Storage temperature: -20℃～+60℃
• Relative humidity: 10-90%, No condensation
• Work frequency: 4G:
• Related Voltage of the Output Relay: 3A/240V AC
• SIM Card Nano type, 3V
• Antenna: 50 Ω SMA
• Wired Switch: Supports
• Dimension: 96.5*50*31.5mm
• Net Weight: 88g.
