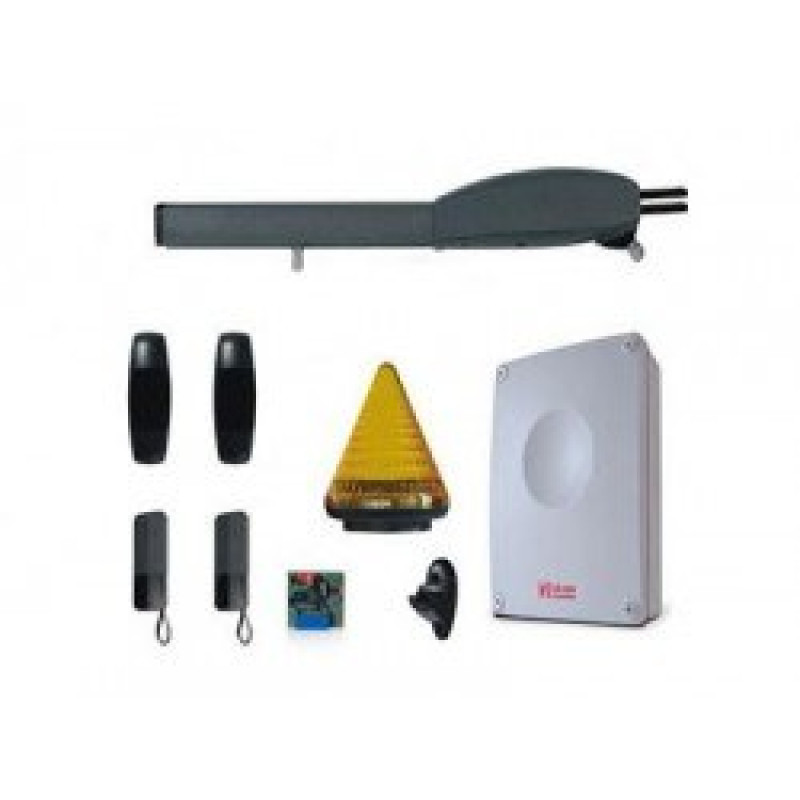

TELCOMA STONE 3

Product Overview

TELCOMA STONE 3 is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: TELCOMA STONE 3

Technical Information

STONE 3 - ELECTROMECHANICAL PISTON 230V FOR SWING GATES
Electromechanical actuator ideal for swing gates up to 3 meters. Equipped with encoder, release mechanism with coded key, and oscillating rear bracket.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Reliable with a sturdy aluminum body treated against oxidation and an oscillating rear bracket that absorbs the possible sagging of the leaves.
STONE3
230 V irreversible electromechanical piston.
For leaves up to 3 m.
STONE3REV
230 V reversible electromechanical piston.
For leaves up to 3 m.
TECHNICAL SPECIFICATIONS STONE3 STONE3REV
Motor power supply 230 V
Max. motor current 1,6 A 1,4 A
Motor power 370 VA 330 VA
Thrust 1600 N 1500N
Max. gate weight 250 Kg
Max opening 120°
Rod stroke 300 mm 500 mm
Actuator speed 19 mm/s 25mm/s
Work cycles 30 % intensive
Capacitor 10 μF
Encoder YES
Mechanical limit switches (foreseen) AP
Grease lubricant TS10
