SOMFY IXENGO L 24V RTS

Product Overview

SOMFY IXENGO L 24V RTS is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: SOMFY IXENGO L 24V RTS

Technical Information

• SOMFY 1216555 IXENGO L 24V RTS
• Gate weight: 400kg, length: to 4m
• Opening time up to 90°: up to 34s
• Power supply/motor power supply: 230V/24V
• The actuator is optimized for most installations.
• The drive was designed for use with narrow posts (width at least 80 mm).
• possibility to set operating parameters
• easy and safe disengagement with individual key
• soft closing of the gate
• adjustable torque value
• adapted to the small space behind the wing
• electronic limit switches

• Mains power: 230V - 50Hz
• Power: 800 W (with 500 W lighting)
• 7-button programming interface: 3-character LCD
• TRS radio frequency: 433.42MHz
• Number of storableremotecontrol devices: max. 40 channels
• Degree of protection: IP 44
• Working conditions: -20 ° C to + 60 ° C

• main power: 220-230 V - 50 Hz
• electric motor supply: 24 VDC
• accessory power supply: 24 V DC / 1200 mA
• maximum power consumption: 40 W
• minimum distance behind the wing: 160 mm
• maximum hinge offset: 183mm
• power supply for external lighting: 500 W max. halogen
• drive force: 2000 N
• working range: 465 mm
• open time to 90 °: 10 to 34 seconds (depending on installation)
• Number of storableremotecontrol devices: max. 40 channels
• working temperature: -20 ° C to +60 ° C
• security class: IP 44

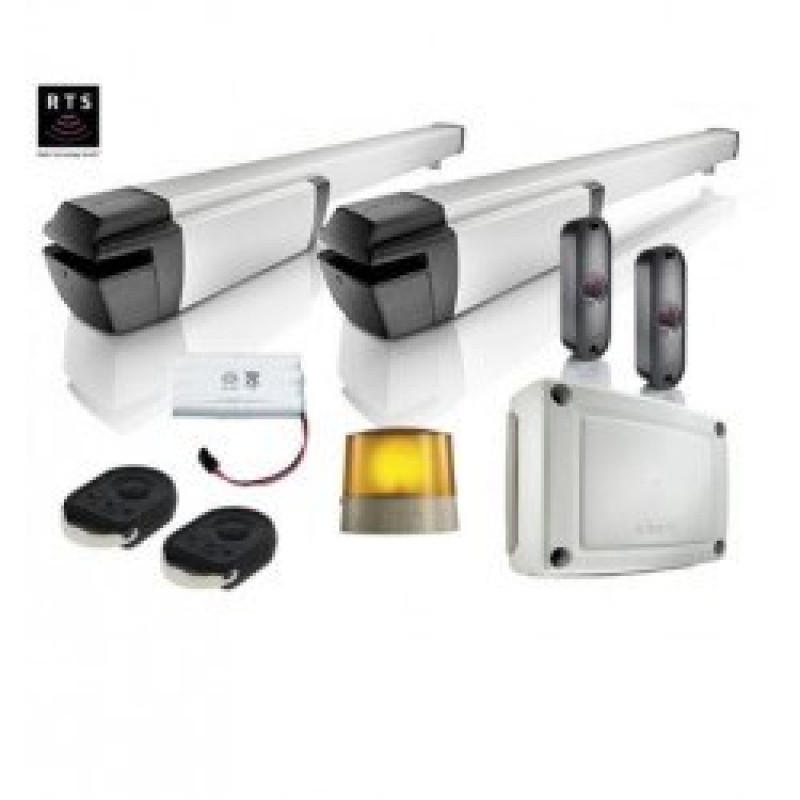

• 2 x Somfy Actuator Ixengo L 24V
• 1 x 3S Ixengo RTS switch
• 2 x Keygo RTS 4-channelremotecontrol - 2 pcs
• 1 x Master Pro 24V lamp with built-in antenna
• 1 x set of Master Pro photocells - Bitech
• 1 x Push Button.
