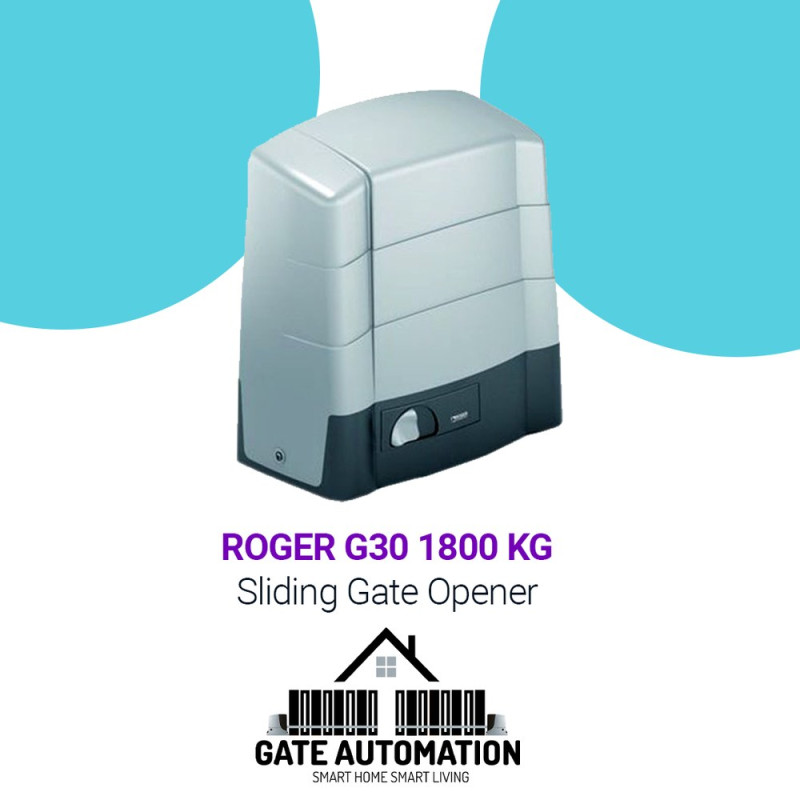

ROGER G30 1800 KG

Product Overview

ROGER G30 1800 KG is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: ROGER G30 1800 KG

Technical Information

• G30/1804
• Electromechanical motor 230V AC irreversible ideal
• for sliding gates up to 1800 kg with built-in control unit H70.
• optical encoder and magnetic limit switch.
• Optical encoder.
• Magnetic limit switch.
• 230V AC.

• Max gate weight: 1800 kg
• Power line supply: 230V AC - 50Hz
• Motor power supply:230V AC
• Power rating: 520W
• Frequency of use: 50%
• Thrust: 1200N
• Operating temperature: -20+55°C
• Protection level: IP44
• Reductor Type: Irreversible
• Manoeuvre speed : 9.5 m/min (0.16 m/s)
• Motor thermal protection: 150°C
• Incorporated condenser: 18 µF
• Limit switch: Magnetic
• Onboard control unit: H70/104AC
• Encoder: Optical
• Type exit gear: Z17/mod 4
• Maximum dimension product in mm (L x W x H) : 346 x 180 x 362
• Product weight packed (Kg): 19,5

• 1 x ROGER G30 1800 Kg Sliding Gate Motor.
• 2 x ROGER E80 Remote Control.
• 1 x ROGER R90 Photocell Sensors.
• 1 x ROGER Blinker Light.
• 4 x Nylon Rack 1m.
• 1 x Push button.
