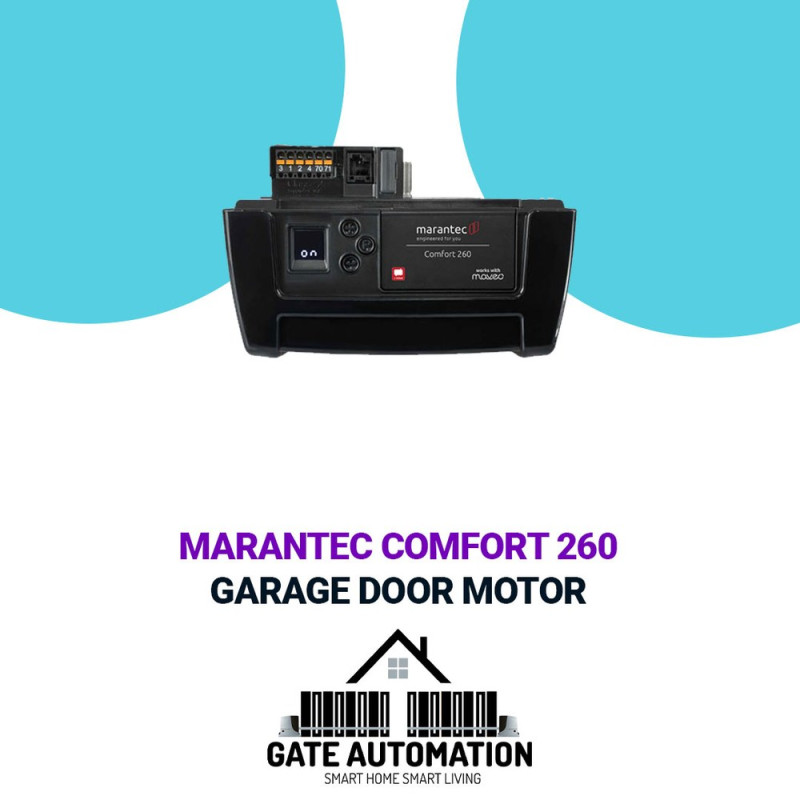

MARANTEC COMFORT 260

Product Overview

MARANTEC COMFORT 260 is included in the IGTS catalogue for garage-door automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: MARANTEC COMFORT 260

Technical Information

• The Comfort 200 series in classic black: We have the right opener for every size of door and gate.
• Choose one of our classics. Featuring the 5th generation of opener technology.
• They are constantly being further developed and reflect the state of the art: LED lighting,
• a control system that is easy on the door/gate, highly sensitive to obstacle detection, easy operation,
• optionally expandable with a battery backup that supplies the necessary power in the event of a power failure,
• or opt for the high-speed version.
• Comfort 260 For light doors:
• The Comfort 260 is suitable for doors weighing up to 90 kg,
• swing, overhead, and canopy doors up to a width of 3.5 m,
• single-walled sectional doors up to 5.0 m and double-walled sectional doors up to 3.0 m.

• 1 x Motor unit with integrated control
• 1 x Digital 921 Module receiver, 868 MHz bi. linked
• 2 x Digital 382 handheld transmitter 2-channel, 868 MHz.
• 1 x Universal installation set for up-and-over and sectional doors
• 1 x Mains cable with Euro plug type C, 1,500 mm.
• 1 x Pair of Photocells.
• Technical Data:

• Running speed (max.) [cm/s]: 16.
• Cycles per hour (max.): 2.
• Cycles per day (max.): 16.
• Operating voltage [V]: 230 V/1~.
• Illuminant : 8-LED-Modul.
• Scope of Operation:
• Width overhead doors (max.) [m]: 3,5.
• Width of tipping and canopy gates (max.) [m]: 3,5.
• Height of tilt and canopy gates (max.) [m]: 2,25.
• Width of single-wall sectional doors (max.) [m]: 5.
• Width of double-walled sectional doors (max.) [m] : 3 5.
• Gate weight (max.) [kg]: 90.
