FAAC 415 230V

Product Overview

FAAC 415 230V is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: FAAC 415 230V

Technical Information

• FAAC 415 230V Electromechanical operator.
• Max width single leaf 2,5 – 4 m
• Off-axis” thrust operator.
• Opening and closing mechanical stops included.
• Horizontal exit for cables to allow near-to-ground installation (low installation).

Dimensions and technical specifications:

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: Asynchronous single-phase
• Max. power: 300 W
• Max expressed force: 3000 N (*)
• Rod max speed: 16 mm/s (*)
• Rod travel: 300 mm (400 mm without mechanical stops)
• Max. leaf opening angle: 110°
• Operating ambient temperature : -20°C ÷ + 55°C
• Thermal protection: 140°C
• Protection class: IP54
• Weight: 7.8 Kg
• Use frequency : S3 – 30%
• Max. leaf width: 2.5 m.
• Mounting brackets: Rear attachment to be welded/screwed
• Dimensions (LxDxH) : 836 x 101 x 147 mm.

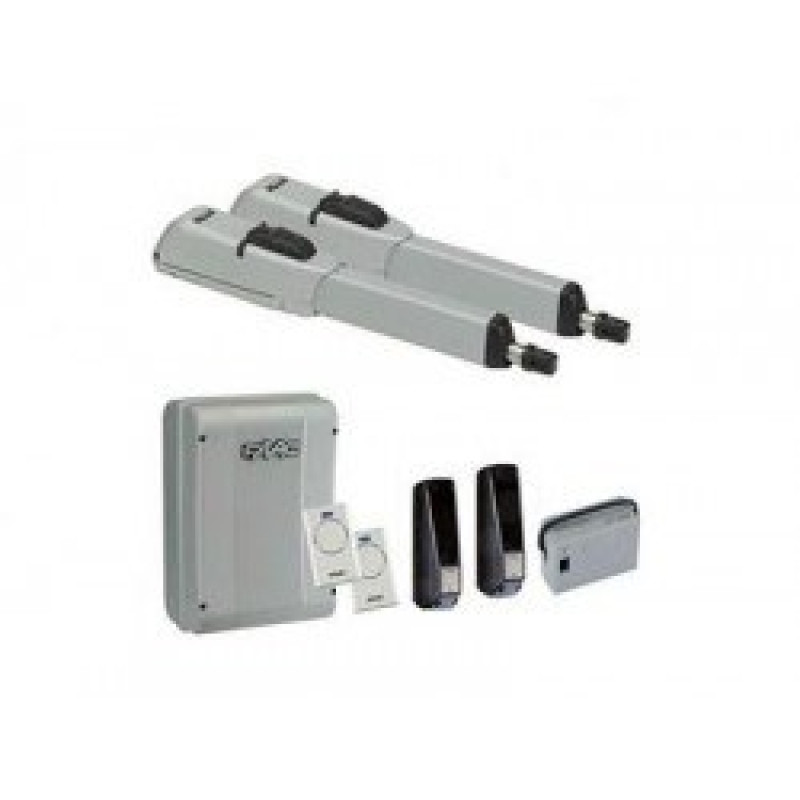

FAAC 415 Kit Includes:

• 2 x FAAC 415 Swing Gate Motor.
• 1 x XLED flashing light.
• 1 x Lock with key.
• 1 x E045S control unit.
• 1 x Enclosure mod. E for electronic control units.
• 1 x XF 433 MHz receiver.
• 1 x Pair of photocells XP 20 BD.
• 1 x 2 channels transmitter XT2 433 SLH LR.
• 1 x Push button.
