CAME ATI 5000

Product Overview

CAME ATI 5000 is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: CAME ATI 5000

Technical Information

• CAME ATI A5000 Irreversible 230 V.
• gearmotor with opening limit microswitch for swing gates with leaves up to 5 m and weighing 400 kg.

• Irreversible gearmotor.
• Motor and encoder management with three-wire cable in 24 V DC versions.
• Obstacle amperometric detection.
• Arrangement for operation in the event of a blackout in the 24 V DC versions.

• Degree of protection (IP): 44.
• Motor Power (V): 230AC 50/60Hz.
• Absorption (A): 1.2.
• Power (W):260.
• Maneuver time at 90° (s): 30 ÷ 40.
• Cycles/Hour: 15.
• Thrust (N): 400 ÷ 4000.
• Operating temperature (°C): -20 ÷ +55.
• Engine thermal protection (°C): 150.

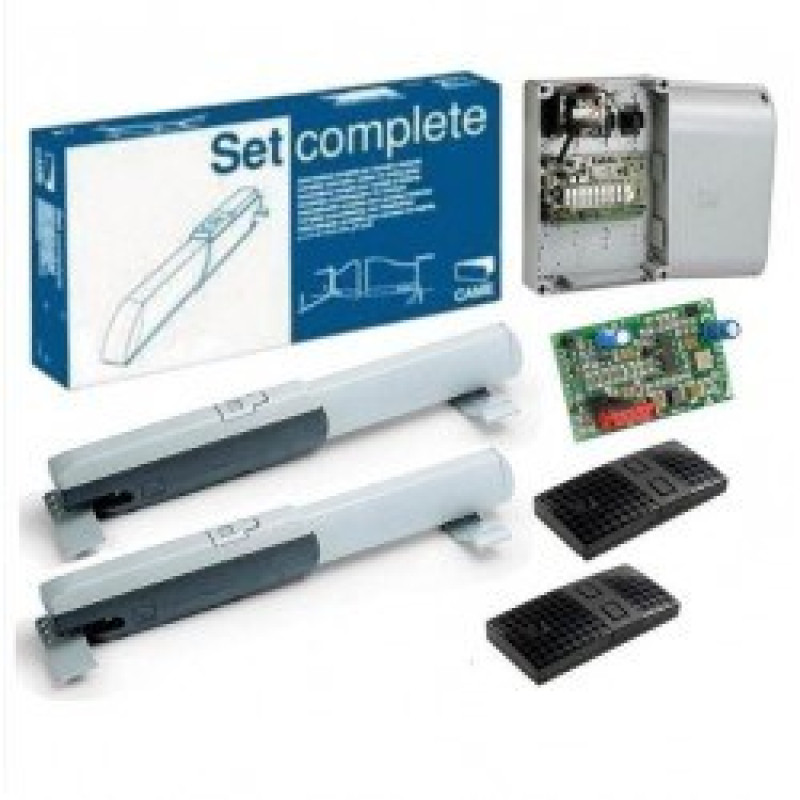

• 2 x CAME ATI A5000 Irreversible 230 V gearmotor with opening limit microswitch.
• 1 x Multifunction control panel for gates with two swing leaves.
• 2 x Came top 432EE Remote Control.
• 1 x CAME KIARO Flashing light.
• 1 x CAME DELTA DIR Photocell Sensors.
• 2 x Wall Fixing bracket.
• 1 x Push button.
