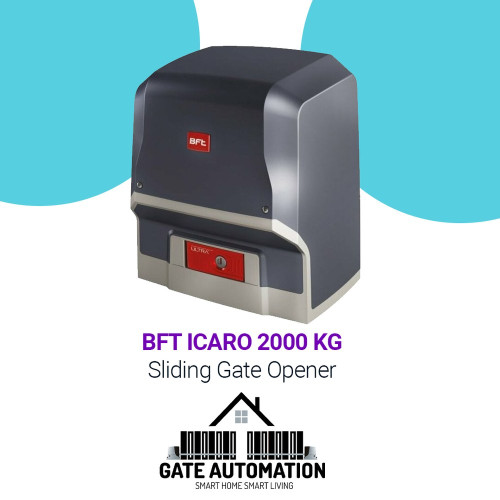

BFT ICARO 2000 KG

Product Overview

BFT ICARO 2000 KG is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BFT ICARO 2000 KG

Technical Information

• Gate Weight: 2000 Kg
• Made in Italy
• ICARO SMART AC A2000
• Product code P925236 00002
• 230 V operator for sliding gates up to 2000 kg with relative encoder. Gate panel speed 9 m/min.
• Electromechanical limit switch.
• Equipped with mechanical safety clutch,
• torque management via D-Track technology and oil bath gearbox.

• Control unit : LEO B CBB L02
• Board power supply: 230 V
• Power consumption: 750 W
• Max. door/gate weight: 2000 kg
• Gate panel speed: 9 m/min
• Type of limit switch: Electromechanical
• Pinion module: 4
• Slowdown: Yes
• Locking: Mechanical
• Release: Lever-operated with personal key
• Impact reaction: Mechanical clutch + encoder
• Frequency of use: very intensive
• Protection rating: IP24
• Environmental conditions: -20 ÷ 55 °C
• Interconnectivity: Yes
• Motor voltage: 230 V

• 1 x BFT ICARO SMART AC A2000 Sliding Gate Motor.
• 1 x Pair of self-aligning photocells. Range 30 m.
• 1 x Flashing light with an incorporated antenna.
• 2 x MITTO B RCB04 R1Transmitter with 4 channels. Range 50/100 m.
• 1 x Push button.
• 4 x Nylon Rack 1 meter.
• 1 x Fixing Plate.
