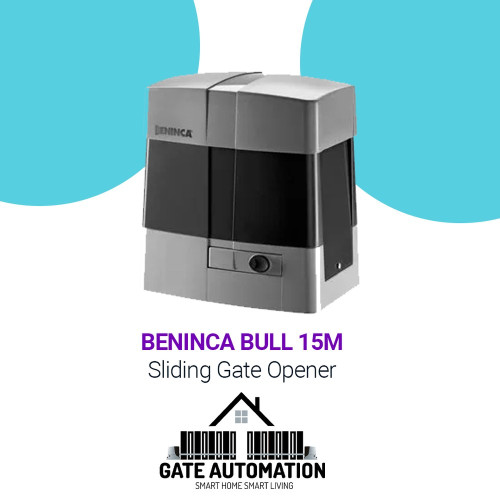

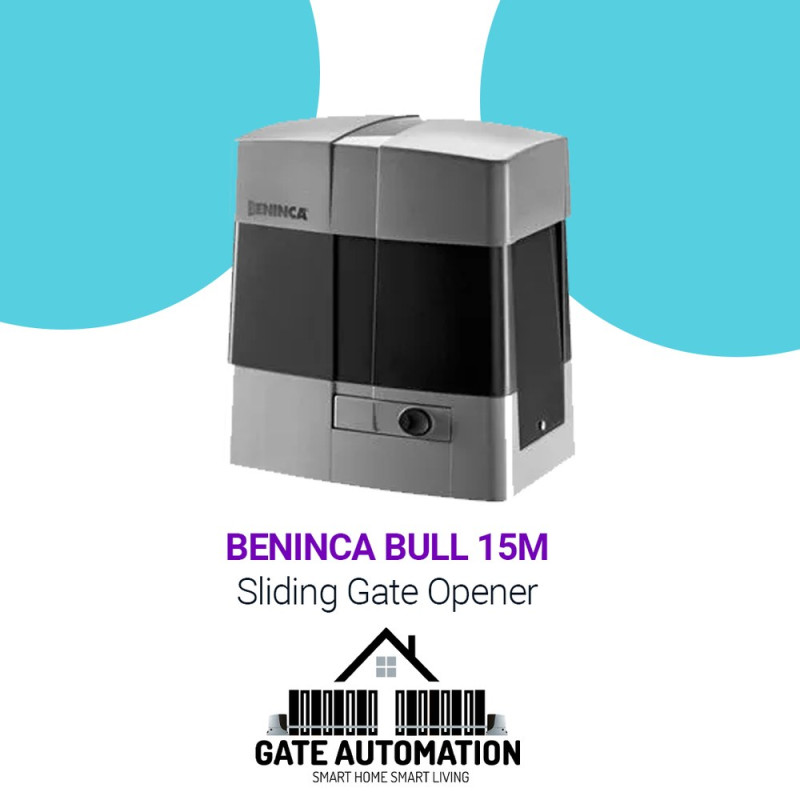

BENINCA BULL 15M

Product Overview

BENINCA BULL 15M is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BENINCA BULL 15M

Technical Information

BENINCA 1500 KG

BENINCA BULL15MKit Includes:

• 1 x Beninca Bull 15m Gate motor.
• 2 x Beninca Remote Control 433.92 MHz.
• 1 x Pair photocells for outdoor use.
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m.
• 1 x Blinker light.
• 1 x Push Button.

Technical Data:

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 2.5 A
• Maximum thrust: 1250 N
• Opening speed: 10.5 m/min
• Duty cycle: 60%
• Protection level: IP44
• Built-in control unit: yes
• Integrated receiver: yes
• Encoder: yes
• Virtual encoder: yes
• Magnetic limit switches: yes
• Pinion for rack: M4 Z18
• Operating temperature : -20°C /+50°C
• Lubrication: GREASE
• Maximum gate weight: 1500 kg
• Weight: 19.6 kg

• Commercial use
• 230 Vac
• Up to 1500 kg
• Integrated device that guarantees maximum precision during the automation maneuvering steps
• 64 transmitters storable inside the receiver
• BENINCA BULL15M
• Reliable and quiet operator for sliding gates up to 1500 kg.
• Ideal for condominium applications.
• Complete with built-in control unit and receiver.
• Maximum safety and accuracy during the operating phases of the gate thanks to the equipped encoder device.
