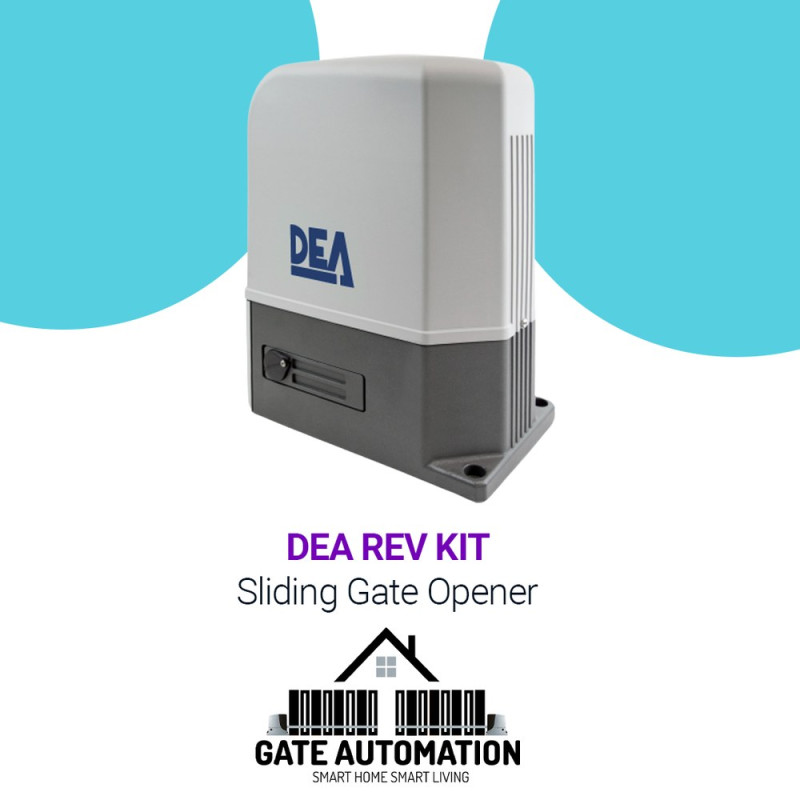

DEA REV KIT

Product Overview

DEA REV KIT is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: DEA REV KIT

Technical Information

DEA REV KIT 1400 KG

• REV Automation for industrial sliding gates up to 1400 kg
• 230V ~ operators with the control board, limit switches, and encoder
• COD. 616000.
• Self-locking with limit switches
• Speed adjustment and slow down in opening and closing.
• Motor control by encoder and obstacle detection.

Technical info: REV220.

• Motor power supply (V) 230V ~ ± 10 % (50/60 Hz).
• Maximum power absorption (W) 500.
• Max thrust (N) 900.
• Duty cycle (cycles/hours) for an 8m leaf length: 22 for gates up to 1400kg.
• N. max. cycles in 24h. for an 8m leaf length: 220 for gates up to 1400kg.
• Built-in capacitor (μF) 14.
• Operating temperature (°C) -20 ÷ 50.
• Motor thermal protection (°C) 150.
• Speed (m/min) 10.
• Standard pinion Z18.
• Weight with packing (Kg) 18.

What’s Included

• 1 x REV220 Motor with electromechanical limit switch.
• 1 x NET230N Integrated control unit.
• 2 x Dea Gt2 Remotes control.
• 1 x LINEAR Pair of Photocells.
• 1 x Built-in Receiver.
• 1 x Blinker Light
• 1 x 4m Nylon Rack.
• 1 x Push Button.
