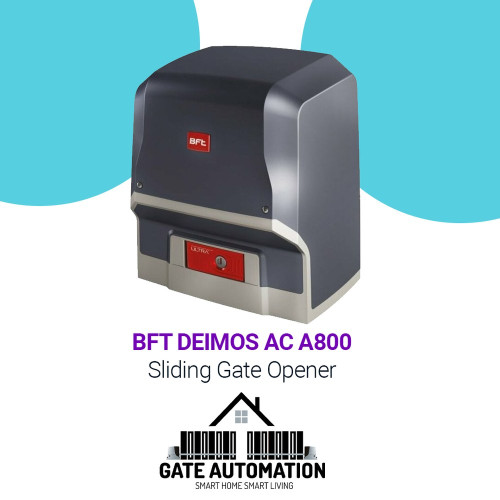

BFT DEIMOS AC A800

Product Overview

BFT DEIMOS AC A800 is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BFT DEIMOS AC A800

Technical Information

BFT DEIMOS AC 800 KG

• DEIMOS AC A800
• Made in Italy
• Product code P925231 00005
• Complete kit 230 V for sliding gates weighing up to 800 kg. Leaf speed 9 m/min.

Technical Data Sheets:

• Control unit : SHYRA-F AC
• Board power supply: 230 V
• Power consumption: 300 W
• Max. door/gate weight: 800 kg
• Gate panel speed: 9 m/min
• Type of limit switch: Electromechanical
• Pinion module: 4
• Slowdown: no
• Locking: Mechanical
• Release: Lever-operated with personal key
• Impact reaction: Electronic clutch
• Frequency of use: Semi-intensive
• Protection rating: IP24
• Environmental conditions: -20 ÷ 55 °C
• Interconnectivity: no
• Motor voltage: 230 V.

BFTDeimos AC A800 Kg Kit Includes:

• 1 x Deimos AC A800 Operator 230V.
• 1 x Pair of self-aligning photocells. Range 30 m.
• 1 x Radius B LTA 230 R1 Flashing light with antenna.
• 2 x Mitto B RCB04 R1Transmitter with 4 channels. Range 50/100 m.
• 1 x Push button.
• 4 x Nylon Rack 1 meter.
• 1 x Fixing Bracket.
