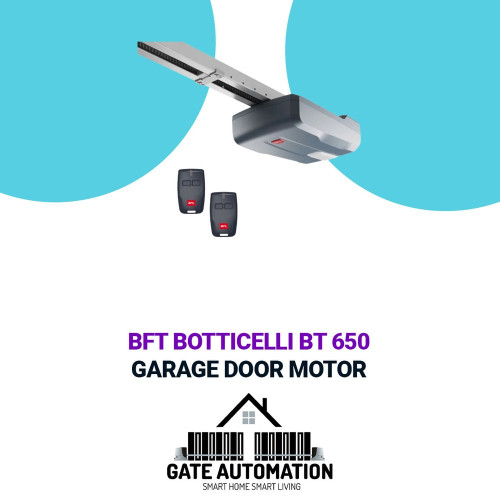

BFT BOTTICELLI BT 650

Product Overview

BFT BOTTICELLI BT 650 is included in the IGTS catalogue for garage-door automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BFT BOTTICELLI BT 650

Technical Information

• Product code P915211 00002
• 24 V operator for sectional garage doors with a tractive force of 60 kg and intensive use.
• Max door surface area 10 m². Opening speed 210 mm/sec.

• Fast and powerful motors: fast opening to minimize waiting times and intensive use.
• Encoder and exclusive D-Track force management system: for safe installation in all conditions.

• Control unit : VENERE BT A ETD
• Nominal voltage: 24 V
• Power consumption: 200 W
• Tractive force and thrust: 65O N
• Number of daily movements at 60°: 50
• Door surface area: 10 m²
• Max opening speed (chain rail): 210 mm/sec
• Max opening speed (belt rail): 240 mm/sec
• Type of limit switch: Encoder + mechanical stop for opening
• Slowdown: Yes
• Locking: Mechanical
• Release: Steel cord or cable
• Impact reaction: D-Track
• Protection rating: IP20
• Environmental conditions: -20 ÷ 60 °C
• Interconnectivity: no
• Consumption on standby: 6.7 W
