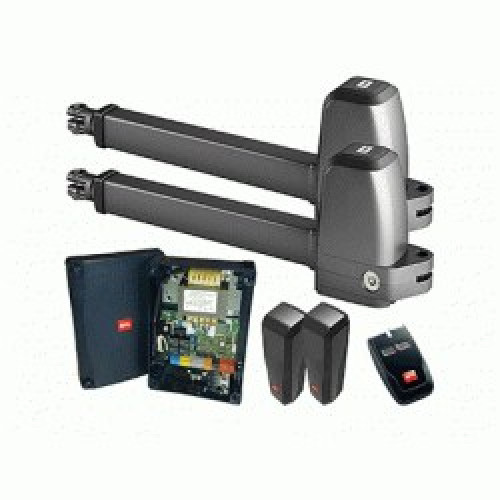

BFT ATHOS AC A25 700 KG

Product Overview

BFT ATHOS AC A25 700 KG is included in the IGTS catalogue for swing gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BFT ATHOS AC A25 700 KG

Technical Information

• Gate Weight: 700 Kg
• Gate Leaf: 2.5 Meter
• Made in Italy
• ATHOS AC A25
• Product code P935108 00002
• Irreversible electromechanical operator 230 V for swing gates weighing up to 700 kg and 2,5 m long.

Technical Data Sheets:

• Control unit : ALENA SW2
• Board power supply: 230 V
• Motor voltage: 230 V
• Power consumption: 280 W
• Max. width of door/gate wing: 2.5 m
• Max. weight of door/gate wing: 700 kg
• Useful rod stroke: 300 mm
• Maximum angle: 110 °
• Cycle time: 14 s
• Type of limit switch: work time
• Slowdown: Yes
• Locking: Mechanical
• Release: Triangle key
• Impact reaction: Electronic clutch
• Frequency of use: Semi-intensive
• Protection rating: IP54
• Environmental conditions: -20 ÷ 55 °C
• Interconnectivity: no

BFT ATHOS AC A25 Kit Includes:

• 2 x ATHOS AC A25 Swing Gate Motors.
• 1 x ALENA SW2 Control Board.
• 1 x Pair of self-aligning photocells. Range 30 m.
• 1 x Flashing light with an incorporated antenna.
• 2 x Remote Controls Range 50/100 m.
• 1 x Push button.
• 2 x Fixing Plates.
