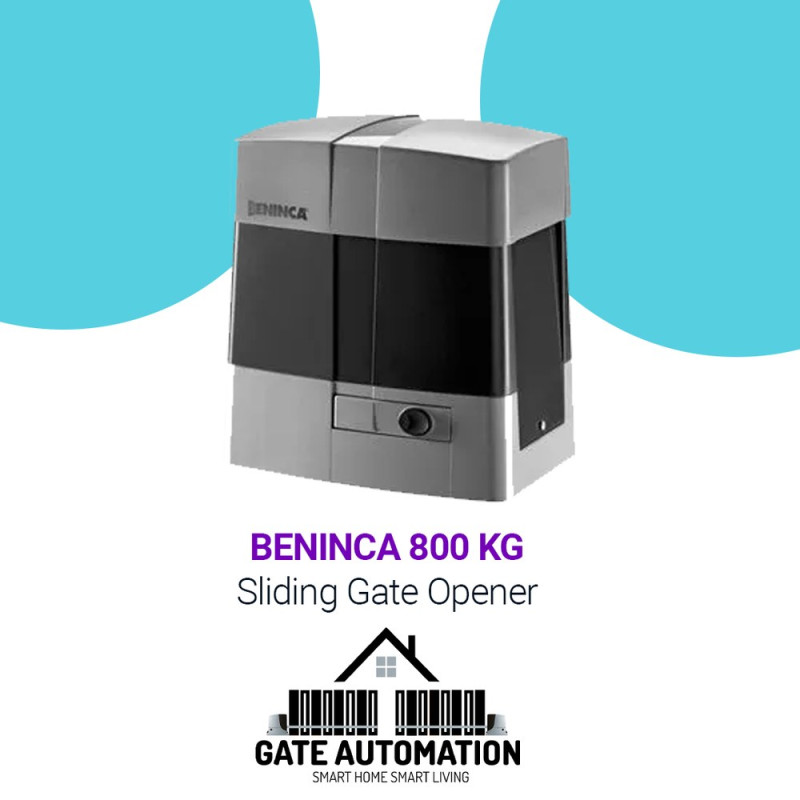

BENINCA 800 KG

Product Overview

BENINCA 800 KG is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BENINCA 800 KG

Technical Information

• Residential use.
• 230 V.
• Up to 800 kg.
• Integrated device that guarantees maximum precision during the automation maneuvering steps.
• 64 transmitters storable inside the receiver.
• Beninca Bull8m.
• Release device entirely of metal equipped with personalized release key.
• Maximum safety and accuracy during the operating phases of the gate thanks to the built-in encoder device.
• The lines and the design make BULL a product perfectly suitable in the most different architectural contexts.
• Available in kit with all accessories.

• 1 x Beninca Bull8m Gate motor.
• 2 x Beninca Remote Control 433.92 MHz.
• 1 x Pair photocells for outdoor use.
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m.
• 1 x Blinker light.
• 1 x Push Button.

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 2.6 A
• Maximum thrust: 940 N
• Opening speed: 10.5 m/min
• Duty cycle: 30%
• Protection level: IP44
• Built-in control unit: yes
• Integrated receiver: yes
• Encoder: yes
• Virtual encoder: no
• Magnetic limit switches: no
• Pinion for rack: M4 Z18
• Operating temperature : -20°C /+50°C
• Lubrication: GREASE
• Maximum gate weight: 800 kg
• Weight: 13.6 kg
• Kit weight: 14.5 kg
