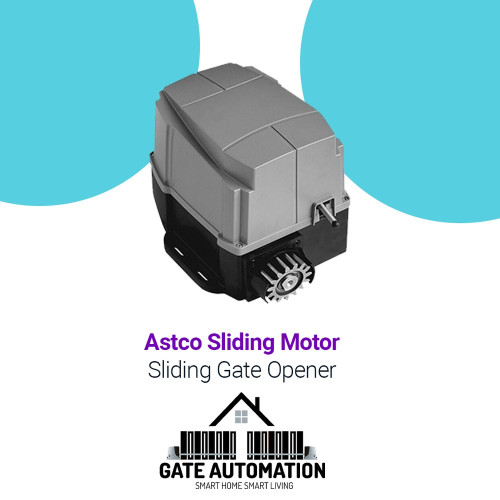

ASTCO 2000 KG

Product Overview

ASTCO 2000 KG is included in the IGTS catalogue for sliding gate automation requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: ASTCO 2000 KG

Technical Information

• Timely resistance detection, automatic reverse when obstacles are met.
• Rolling code technology with 433MHz frequency.
• Powerful AC motor with low noise overheat protection.
• The emergency release provides manual operation in case of power failure.
• Safety is further ensured with optional accessories photocells and flashing lights.
• It can realize the function of opening the door.

• 1 x Astco Gate motor 2000 kg.
• 2 x Remote Control 433.92 MHz Rolling Code.
• 1 x Pair photocells for outdoor use.
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m.
• 1 x Blinker light.
• 1 x Push button.

• Model : F-500B,
• Max. door weight (kg): 2000kg,
• Input power (Ｗ): 250,
• Working voltage (Vac): 220~240,
• Thermal protection temperature (℃): 120,
• Motor rotation speed (rpm): 1400,
• Moving speed (m/min): 11.5,
• Ambient temperature range (℃): -20 ~ +40.
