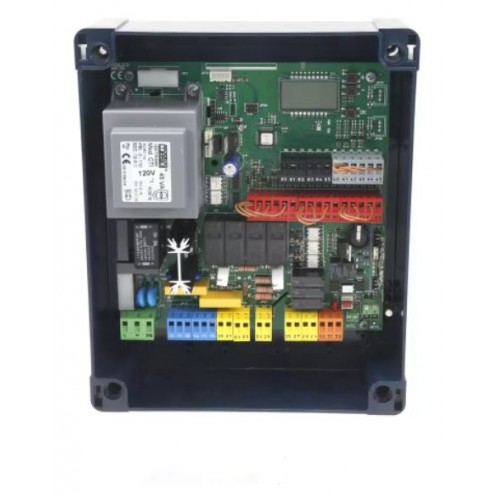

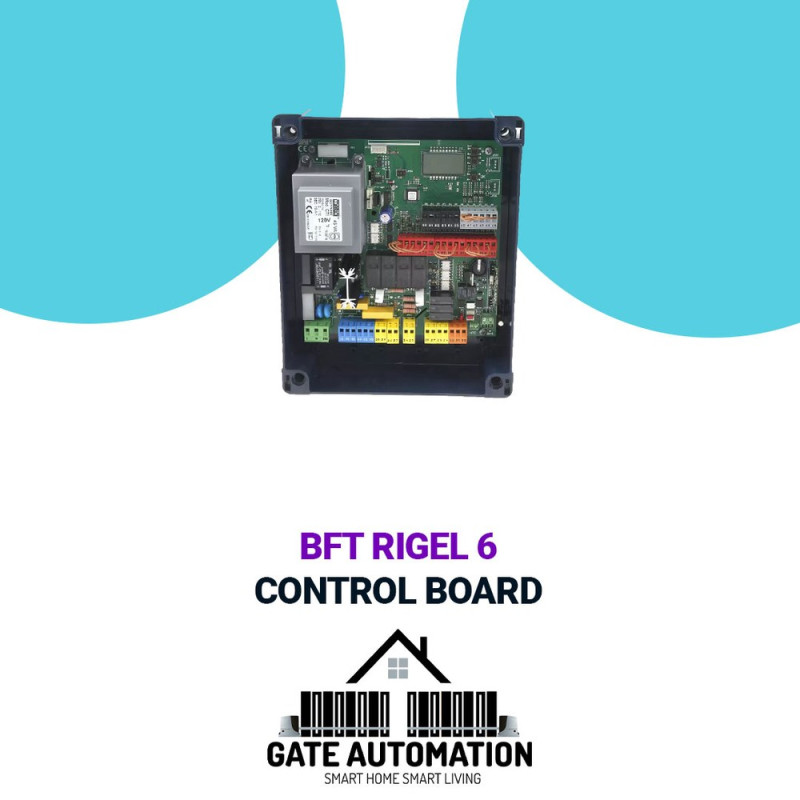

BFT RIGEL 6

Product Overview

BFT RIGEL 6 is included in the IGTS catalogue for gate control-board requirements. For new installations or replacement work, compatibility should be checked against the site requirement and any existing equipment.

Model: BFT RIGEL 6

Technical Information

Universal control panel with display for one or two 230V - 650+650W

operators Application:

• universal control panel for one or two operators Card
• power supply: 230 V single-phase Operators power supply: 230V single-phase
• Main features: removable terminal blocks,
• programming and diagnostics with display,
• built-in four-channel receiver,
• electro lock, electronic torque limiter,
• electronic deceleration at opening and closing,
• a separate limit switch input for each motor,
• traffic light management, preheating hydraulic operators,
• weekly timer,
• possibility to delete a specificremotecontrol,
• customization of the 4 radio channels,
• personalization of the duration of the delayed output,
• adjustable sensitivity to the obstacle.

Main functions:

• automatic re-closing,
• separate motor working times,
• stays locked when closed,
• water hammer,
• 2/3/4 step logic,
• partial opening,
• fast closing,
• separate opening and closing

Compatibility:

RIGEL 5 - RIGEL 4 - RIGEL 3 - RIGEL N

Electronic board BFT for the following motors.

• BFT Phobos AC A25.
• BFT Phobos AC A50.
