BENINCA CP B24 TURBO

Description

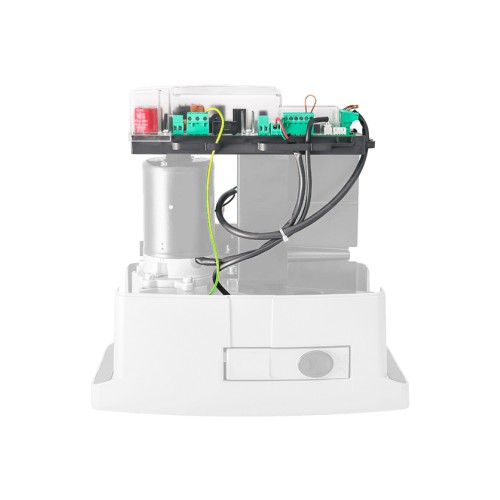

BENINCA CP B24 TURBO Control Board | Advanced Control for TURBO Sliding Gates in UAE

Experience next-level automation control with the **BENINCA CP B24 TURBO Control Board**, a sophisticated, feature-rich control system specifically engineered for Bull624/1224 TURBO series sliding gate actuators across Dubai, Sharjah, and the UAE. Featuring a selectable 115/230Vac power system, integrated LCD display, 433.92MHz ARC coding receiver, and intelligent electronic torque adjustment, this professional-grade board delivers unparalleled performance, safety, and customization for heavy-duty residential and commercial sliding gates.

Advanced Control for Bull TURBO Series Actuators

Designed exclusively for **Beninca Bull624 and Bull1224 TURBO series sliding gate actuators**, this board provides precise, powerful control with selectable 115/230Vac 50/60Hz operation and 24 Vdc / 20 A power output. Its single-actuator design is built to manage the demanding requirements of large, heavy sliding gates common in UAE properties.

Integrated LCD Display & Intelligent Configuration

The **integrated LCD display** provides real-time system monitoring and status updates. Combined with **auto-setting parameters and intelligent electronic torque adjustment**, the board automatically calculates optimal operating settings, simplifying installation and ensuring smooth, efficient gate movement every time.

Comprehensive Safety & Security Integration

Engineered with professional safety in mind, the board features **configurable photocell inputs (PHO & PHC), a sensitive edge input, and a dedicated safety sensor input**. This comprehensive suite allows for seamless integration of safety beams, edges, and other protective devices, ensuring full compliance with safety standards for properties across the Emirates.

Built-in ARC Coding Receiver & KNX Connectivity

Equipped with an **integrated 433.92MHz 512-code radio receiver featuring ARC coding**, the board enables secure wireless remote control. It is also **pre-designed for KNX connection** via an optional X.BE board, offering future-proof integration into smart building and home automation systems in Dubai, Abu Dhabi, and Sharjah.

Key Features of the BENINCA CP B24 TURBO Control Board:

**Bull TURBO Series Compatibility:** Specifically for Bull624/1224 TURBO sliding gate actuators. **Selectable 115/230Vac Power:** Flexible installation for different electrical setups. **Integrated LCD Display:** Real-time monitoring and system status. **Intelligent Electronic Torque Adjustment:** Automatically calculates optimal force settings. **Comprehensive Safety Inputs:** Configurable for photocells, sensitive edges, and safety sensors. **Built-in 433.92MHz ARC Receiver:** Secure 512-code wireless remote control. **Removable Terminal Boards:** Simplifies wiring and installation. **KNX System Ready:** Pre-designed for smart building integration. **Multiple Operation Modes:** Automatic, Semi-automatic, and Deadman’s logic.
Control the most demanding gates with our advanced range of Automatic Gate Motor Control Board solutions.

The Ultimate Intelligent Control Hub for Heavy-Duty Sliding Gates in the UAE

In summary, the BENINCA CP B24 TURBO Control Board represents the pinnacle of intelligent gate automation control. Its combination of power, smart technology, integrated safety, and connectivity options makes it the definitive choice for property owners and installers seeking a reliable, high-performance, and future-proof control system for heavy sliding gates across the UAE. Contact IGTS for technical consultation and installation support in Dubai, Sharjah, or Abu Dhabi.
